Ceag
EXIT N (arrow down) PU
Part number12191030003EAN / GTIN4250217412790HS code8502.20
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

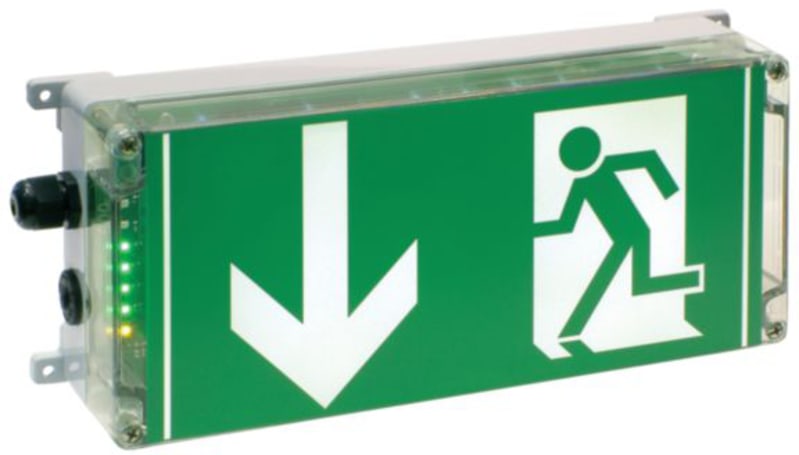

Ceag 12191030003 EXIT N (ARROW DOWN) PU.
Technical Specifications
- Manufacturer part number (MPN)
- 12191030003
- EAN / GTIN
- 4250217412790
- Sales unit
- pcs
- Mounting method
- Surface mounting
- Protection class according to IEC 61140
- I
- Width
- 76 mm
- Lamp power
- 3 W
- Shock resistant
- Yes
- Conductor cross section
- 2.5 mm²
- Connection type
- Screwed terminal
- Voltage type
- AC/DC
- Power supply system
- Central
- Type of control gear
- Electronic ballast
- Colour rendering index CRI
- 70-79
- Continuous operation
- Yes
- Suitable for labelling type
- Insert sheet/plate
- Type of indicator
- Single-sided
- Number of poles
- 3
- Length
- 175 mm
- Height/depth
- 175 mm
- Housing material
- Plastic
- Lamp type
- LED not exchangeable
- Wiring system
- Continuous circuit/emergency circuit
- Impact strength
- IK10
- Nominal voltage
- 110–250 V
- Degree of protection (IP)
- IP66
- For Ex-zone gas
- 1, 2
- With light source
- Yes
- Suitable for number of light sources
- 1
- Monitoring equipment
- Automatic self test
- For Ex-zone dust
- 21, 22
- Luminous flux in emergency mode
- 185 lm
- Recognition distance
- 25 m
- Colour temperature
- 3000–6500 K
- Max. system power
- 6 W
- Rated luminous flux according to IEC 62722-2-1
- 185 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 60 h
- Highest energy efficiency class of the exchangeable lamp
- E
- Lowest energy efficiency class of the exchangeable lamp
- E
- Nominal operation time
- 60000 h
- Exchangeable control gear
- Yes
- Emergency power supply system
- Peripheral
- Emergency function monitoring system
- Automatic self test
- Power factor
- 0.5
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8502.20
Cross References
- EAN 4250217412790
- SAP 1000297033
- Code 8149920
Product Documentation
Document preview: EXIT N (arrow down) PU (12191030003) — Specification sheet
