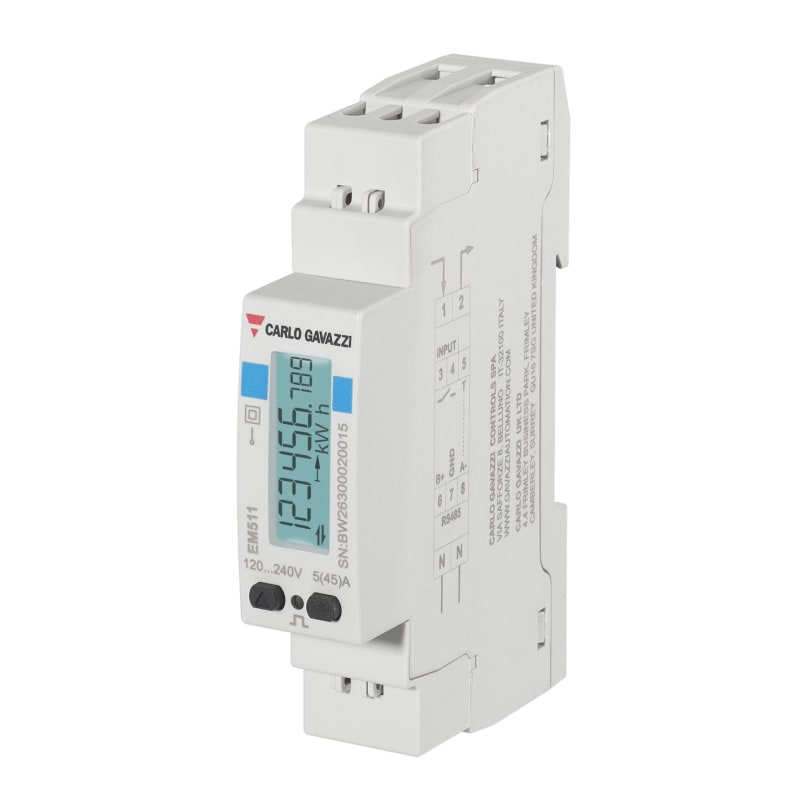

Carlo Gavazzi EM511 Single-Phase Energy Meter 45 A Modbus
Pricing
Request a quote
We reply within 24 hours
Product Description
Single-phase direct-connect energy analyser rated 5 (45) A at 120-240 V L-N with RS-485 Modbus RTU output and one digital input. Measures consumption and generation with class-C accuracy per the Measuring Instruments Directive, one module (18 mm) wide on DIN rail. Digital display, IP20 housing, cULus and CE approvals for monitoring circuits in commercial and light industrial installations.
Technical Specifications
- Manufacturer part number (MPN)
- EM511DINAV81XS1X
- EAN / GTIN
- 8054155003104
- Sales unit
- pcs
- Voltage inputs
- 1-phase (2-wire), 120 V L-N; 1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N
- Frequency
- 60Hz
- Current inputs
- direct connection up to 45 A
- Energy metering
- Consumption and generation
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America); UKCA (UK)
- E-number (NO)
- 8201171
- E-number (SE)
- 0951122
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 18 mm
- Model
- Direct measurement
- Height
- 90 mm
- Depth
- 58 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 0.6 W
- Max. current (Imax)
- 45 A
- Width in number of modular spacings
- 1
- Number of positions total (counter)
- 9
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Type of interface
- RS-485
- Energy type
- Effective power and reactive power
- Tariff type
- One-tariff
- Tariff control
- Internal/external
- Approval
- Measuring Instruments Directive
- Pulse output
- None
- Accuracy class
- C
- Pole type
- Single phase
- Nominal current (In)
- 45 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9033.00
Cross References
- EAN 8054155003104
- SAP 1200714239
- Code 83813585
Product Documentation
