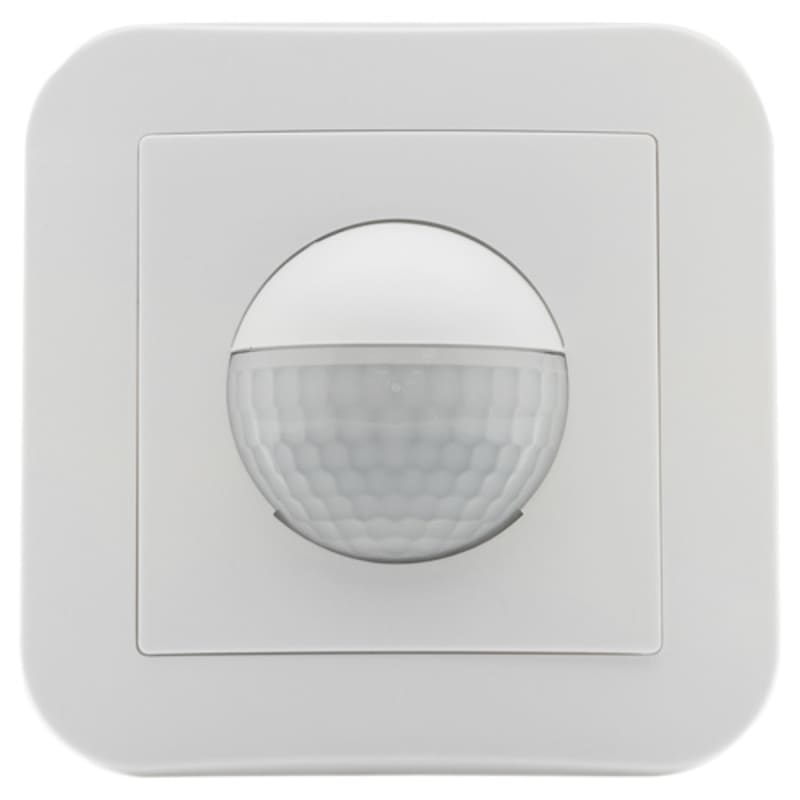

Carlo Gavazzi 360° Motion Detector with Acoustic Sensor 230 V

The Carlo Gavazzi 92623 is a wall-mount passive-infrared motion detector with an integrated acoustic sensor that extends the switch-on time in response to sound. It operates at 230 V AC with a relay output rated up to 2300 W and provides 360° coverage over roughly a 10 m floor diameter from a 2.5 m mounting height. Typical applications include corridors, stairwells and utility rooms where occupancy is confirmed by both motion and sound.

Manufacturer part number (MPN)

92623

EAN / GTIN

4007529926237

HS code

8536.90

Sales unit

pcs

Nominal voltage

230 V

Mounting method

Flush-mounted

Colour

White

Model

Movement sensor

Height

87 mm

Connection type

Screwed terminal

Surface protection

Untreated

Voltage type

AC

Switching-on delay

1 s

Switch-off delay

1 s

Built-in depth

87 mm

Material quality

Thermoplastic

Max. reach frontally

5 m

Max. reach sideways

5 m

Max. switching power

2300 W

Temperature

-25–50 °C

Max. starting current

165 A

Material

Plastic

Diameter reach on floor

10 m

RAL-number (similar)

9010

Control current

17 mA

Scan angle

360 °

Impact strength

IK00

Degree of protection (IP)

IP20

Surface finishing

Matt

Min. switch-on time

1 s

Max. duty cycle

30 min

Suitable for wall mounting

Yes

Optimum mounting height

2.5 m

Number of switching zones

3

With DALI interface

No

Min. starting current

0 A

Min. depth of built-in installation box

50 mm

Max. presence range

78 m²

Max. switching power LED

10 W

Sensor type

Passive infrared

Country of origin

Germany

HS Code

8536.90

• EAN 4007529926237
• SAP 1000516036
• Code 8962677
