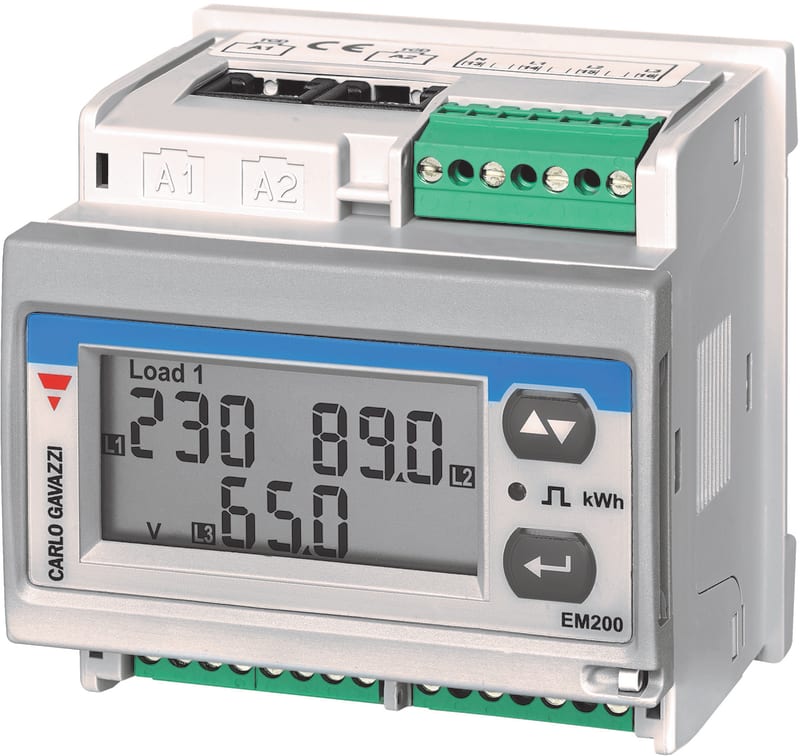

Double 3-phase meter RS485 (EM28072DMV53X2SX)

Carlo Gavazzi EM28072DMV53X2SX Manufacturer description: Three-phase Energy analyzer, 160 to 240 V L-N, 277 to 415 V L-L, 32 (36) A, RS485 Modbus RTU. EM28072DMV53X2SX Energy meter.

Manufacturer part number (MPN)

EM28072DMV53X2SX

Sales unit

pcs

El-nummer (NO)

8200693

ETIM class

SC001506

Voltage inputs

1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L

Frequency

50Hz; 60Hz

Current inputs

direct connection up to 32 A

Multi-load sensor type

solid core; split core

Monitored loads per meter

1-phase loads: up to 6; 3-phase loads: up to 2

Energy metering

Consumption; Consumption and generation

Communication port and protocol

RS485 (Modbus RTU)

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); cULus (North America); UKCA (UK)

E-number (NO)

8200693

Mounting method

DRA (DIN-rail adaptor)

Model

Measurement transformer

Type of indication

Digital

Max. current (Imax)

38.4 A

Width in number of modular spacings

4

Type of meter

Electronic

Degree of protection (IP)

IP20

Type of interface

RS-485

Energy type

Effective power and reactive power

Pulse output

None

Accuracy class

B

Nominal current (In)

32 A

Country of origin

Italy

HS Code

9031.80
