Carlo Gavazzi EM340 3-Phase MID Energy Meter RS485 Modbus
Pricing
Request a quote
We reply within 24 hours
Product Description

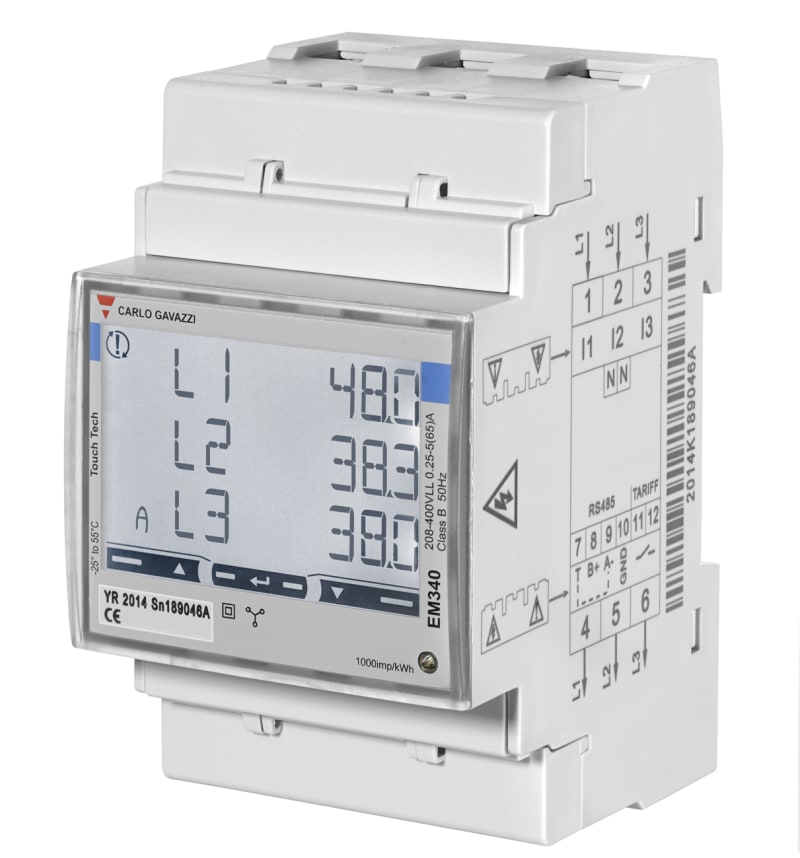

Carlo Gavazzi EM340DINAV23XS1PFB is a three-phase MID-certified energy analyser for DIN-rail mounting. It measures 120 to 230 V L-N and 208 to 400 V L-L at 5 (65) A across two- and three-phase configurations and reports both consumption and generation. Communication is over RS485 Modbus RTU with an S0 optical pulse output and two-tariff support. Width is 3 DIN modules with an IP51 front face.
Technical Specifications
- Manufacturer part number (MPN)
- EM340DINAV23XS1PFB
- EAN / GTIN
- 8030956070200
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage inputs
- 2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L
- Frequency
- 50Hz
- Energy metering
- Consumption and generation
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); MID (Europe, fiscal metering); UKCA (UK)
- E-number (NO)
- 8201161
- E-number (SE)
- 0934008
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 54 mm
- Model
- Direct measurement
- Height
- 91 mm
- Depth
- 63 mm
- Suitable for
- Purchase
- Type of indication
- Digital
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 3
- Number of positions total (counter)
- 8
- Type of meter
- Electronic
- Degree of protection (IP)
- IP51
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Approval
- Measuring Instruments Directive
- Pulse output
- Optical
- Pulse type
- S0
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Nominal current (In)
- 5 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 8030956070200
- SAP 1200018997
- Code 81410549
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Carlo Gavazzi ZRLS12NA Slim relay socket for RSLM slim relays, 5-pin, 12/24 V AC/DC coil, screw terminals
Carlo Gavazzi
Current Transformer 3-Phase 500A
MP3500
Carlo Gavazzi
Kapasitive Transmitter
CA30CLN12MT
Carlo Gavazzi
SMB sensor DISP temp
SHSUTD
Carlo Gavazzi
3-Phase soft starter 45A 230-400V (RSGT4045F0V111C)
Carlo Gavazzi
M30 Capacitive transmitter IO link fast cable (CA30CAN25BPA2IO)
Carlo Gavazzi
Inductive transmitter M30, long, IO-Link, cable
ICF30L45N22B2IO
Carlo Gavazzi
Split-core current transformer 600A (CTD6S6005AXXX)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EM340DINAV23XS1PFB?
- EM340DINAV23XS1PFB can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is EM340DINAV23XS1PFB.
- What is the HS code for EM340DINAV23XS1PFB?
- The customs tariff (HS) code for EM340DINAV23XS1PFB is 8543.70.
- Who manufactures EM340DINAV23XS1PFB?
- EM340DINAV23XS1PFB is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for EM340DINAV23XS1PFB?
- Yes — the EM340DINAV23XS1PFB datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EM340DINAV23XS1PFB?
- The minimum order quantity is 1.
- Is EM340DINAV23XS1PFB available?
- Yes — EM340DINAV23XS1PFB is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
