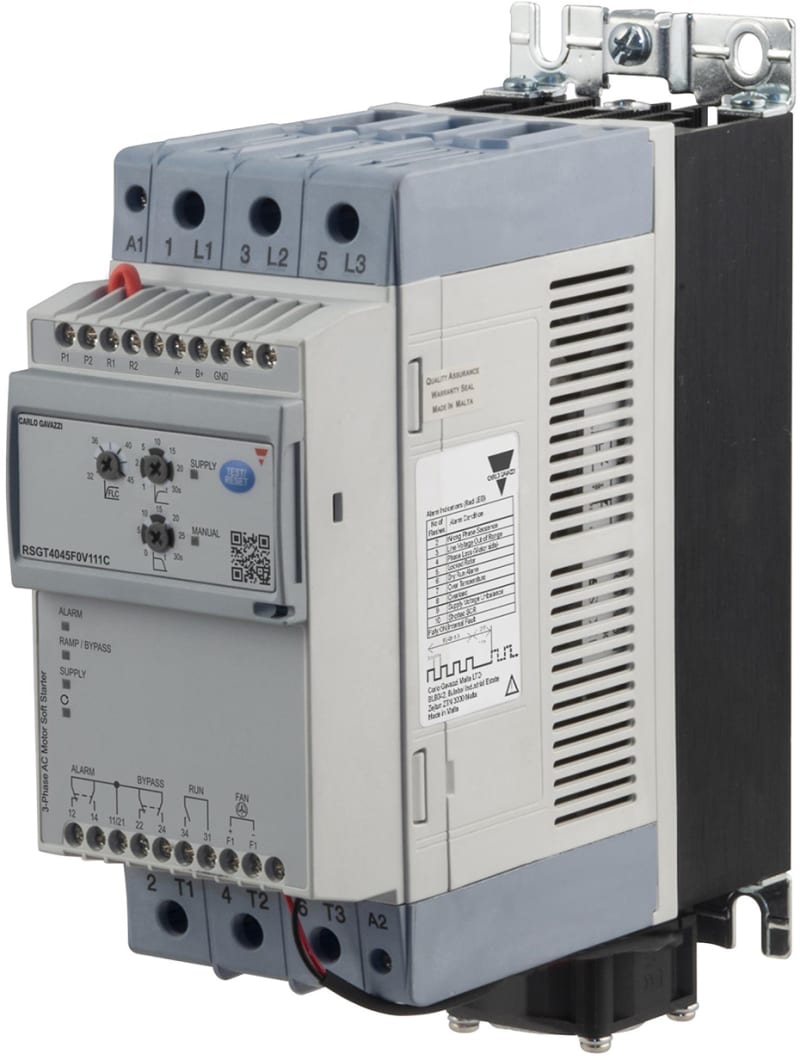

3-Phase soft starter 45A 230-400V (RSGT4045F0V111C)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RSGT4045F0V111C Manufacturer description: 3 phase soft starter for induction motors, Operating voltage (Ue): 220 - 400 Vac, Rated current (Ie): 45 Aac, Control voltage (Uc): 24 Vac/dc, DIN rail/Panel mount, Supply voltage (Us): Internal, 3-phase control, Class 10 overload, Modbus. 3-phase soft starter 45A 230-400V For general drift.
Technical Specifications
- Manufacturer part number (MPN)
- RSGT4045F0V111C
- EAN / GTIN
- 5350035435236
- Sales unit
- pcs
- Rated operation current Ie at 40C Tu
- 45 A
- Rated operating voltage Ue
- 187 V ... 440 V
- Rated power three-phase motor, inline, at 230 V
- 11 kW
- Rated power three-phase motor, inline, at 400 V
- 22 kW
- Rated control supply voltage Us at AC 50HZ
- 21.6 V ... 26.4 V
- Rated control supply voltage Us at DC
- 21.6 V ... 26.4 V
- Internal bypass
- Yes
- Product Width
- 75 mm
- Product Height
- 221 mm
- Product Depth
- 180 mm
- E-number (NO)
- 4115409
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Release class
- CLASS 10
- Rated surrounding temperature without derating
- 40 °C
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8503.00
Cross References
- EAN 5350035435236
- SAP 1200627002
- Code 83031699
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi

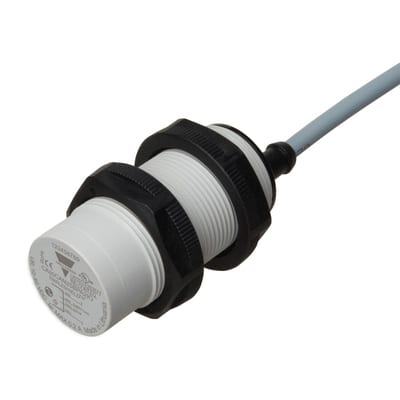

M30 Capacitive transmitter IO link fast cable (CA30CAN25BPA2IO)
Carlo Gavazzi

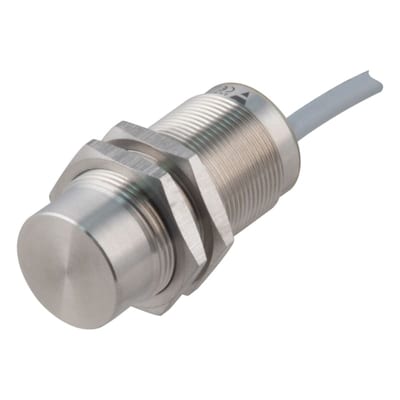

Inductive transmitter M30, long, IO-Link, cable
ICF30L45N22B2IO
Carlo Gavazzi

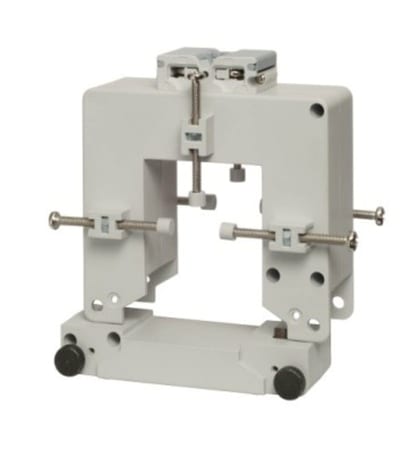

Split-core current transformer 600A (CTD6S6005AXXX)
Carlo Gavazzi

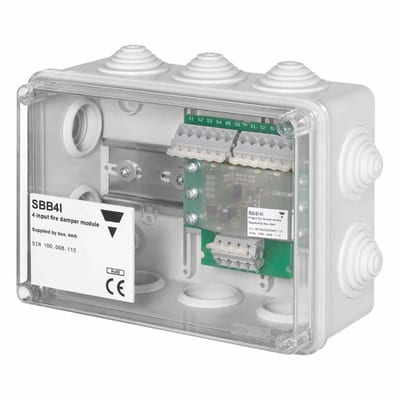

Fire-damper input module 4 voltage-free inputs
SBB4I
Carlo Gavazzi
DUP.8 Channel Sender 10-30VDC
G34205502800
Carlo Gavazzi
Photoelectric Sensor IO link BGS 250mm cable
PD30CTBS25BPA2IO
Carlo Gavazzi
SSR 3-F. 400VAC/55A 24-275VAC (RZ3A40A55P)
Carlo Gavazzi

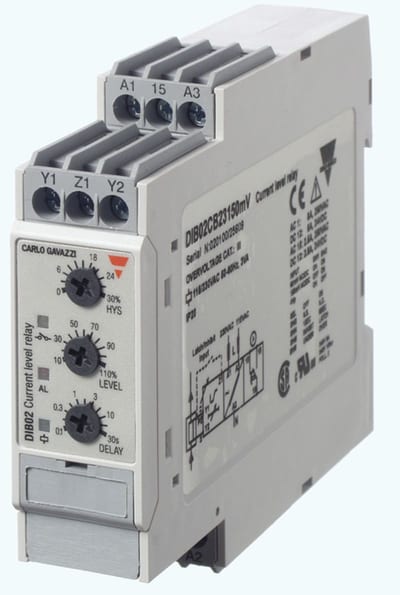

Current Relay progr.bart 60/150MV, 4VP 230V
DIB02CB23150MV
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy RSGT4045F0V111C?
- RSGT4045F0V111C can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is RSGT4045F0V111C.
- What is the HS code for RSGT4045F0V111C?
- The customs tariff (HS) code for RSGT4045F0V111C is 8503.00.
- Who manufactures RSGT4045F0V111C?
- RSGT4045F0V111C is a Carlo Gavazzi product in the Drives & Controllers range.
- Is a datasheet available for RSGT4045F0V111C?
- Yes — the RSGT4045F0V111C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for RSGT4045F0V111C?
- The minimum order quantity is 1.
- Is RSGT4045F0V111C available?
- Yes — RSGT4045F0V111C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
