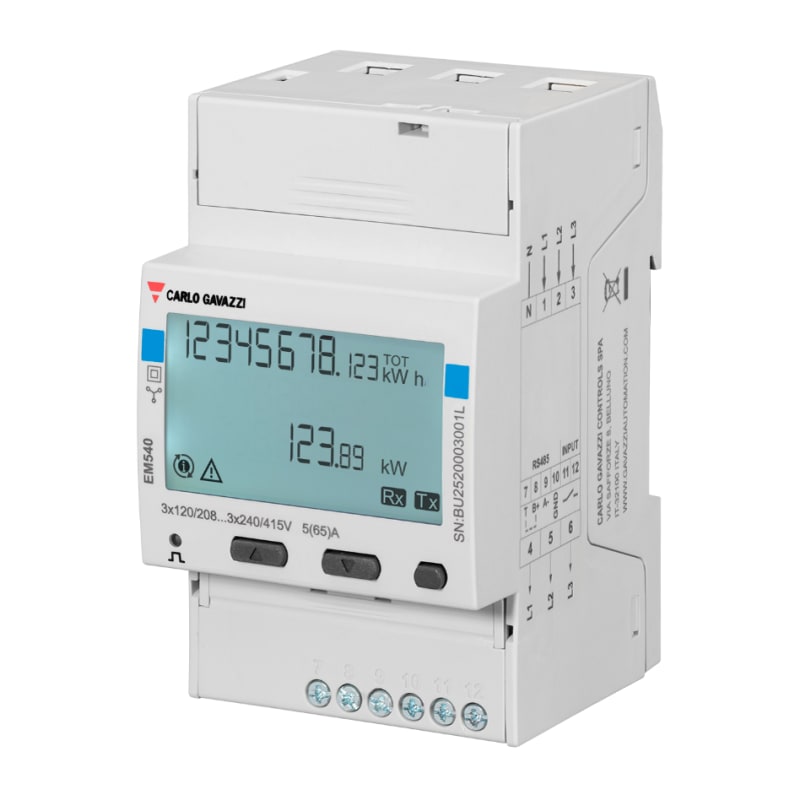

Meter 3-Phase 65A RS485 MID (EM540DINAV23XS1PFA)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM540DINAV23XS1PFA Manufacturer description: Three-phase MID Energy analyzer, 120 to 230 V L-N, 208 to 400 V L-L, 5 (65) A, RS485 Modbus RTU. METER 3-PHASE 65A RS485 MID.
Technical Specifications
- Manufacturer part number (MPN)
- EM540DINAV23XS1PFA
- EAN / GTIN
- 8030956089097
- Sales unit
- pcs
- Voltage inputs
- 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L
- Frequency
- 50Hz
- Current inputs
- direct connection up to 65 A
- Energy metering
- Consumption
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); MID (Europe, fiscal metering); UKCA (UK)
- E-number (NO)
- 8201153
- E-number (SE)
- 0954021
- Mounting method
- Built-in
- Width
- 54 mm
- Model
- Direct measurement
- Height
- 90 mm
- Depth
- 63 mm
- Suitable for
- Purchase
- Type of indication
- Digital
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 4
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Type of interface
- RS-485
- Energy type
- Effective power and reactive power
- Tariff type
- One-tariff
- Tariff control
- Internal
- Approval
- Measuring Instruments Directive
- Pulse output
- None
- Pulse type
- D0
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Nominal current (In)
- 65 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8030956089097
- SAP 1200714233
- Code 83813602
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Current Transformer 100/5A (CTD1X1005AXXX)
Carlo Gavazzi
3-Phase supply monitoring relay (DPB51CM44)
Carlo Gavazzi
Heating Element 100W 25 °C
CSF06012.0-00
Carlo Gavazzi
Heating Element 50W 25 °C
CSF06002.0-00
Carlo Gavazzi
Supply Cable 2X1.5MM2 2M
LED025-244356
Carlo Gavazzi
M12 Capacitive transmitter IO-Link M12 plug (CA12EAF04BPM1IO)
Carlo Gavazzi
Current Transformer M/GR. Verdi (DIA53S72450A)
Carlo Gavazzi
Level Probe Conductive 2 Electrodes (VN2)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EM540DINAV23XS1PFA?
- EM540DINAV23XS1PFA can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is EM540DINAV23XS1PFA.
- What is the HS code for EM540DINAV23XS1PFA?
- The customs tariff (HS) code for EM540DINAV23XS1PFA is 9028.30.
- Who manufactures EM540DINAV23XS1PFA?
- EM540DINAV23XS1PFA is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for EM540DINAV23XS1PFA?
- Yes — the EM540DINAV23XS1PFA datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EM540DINAV23XS1PFA?
- The minimum order quantity is 1.
- Is EM540DINAV23XS1PFA available?
- Yes — EM540DINAV23XS1PFA is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
