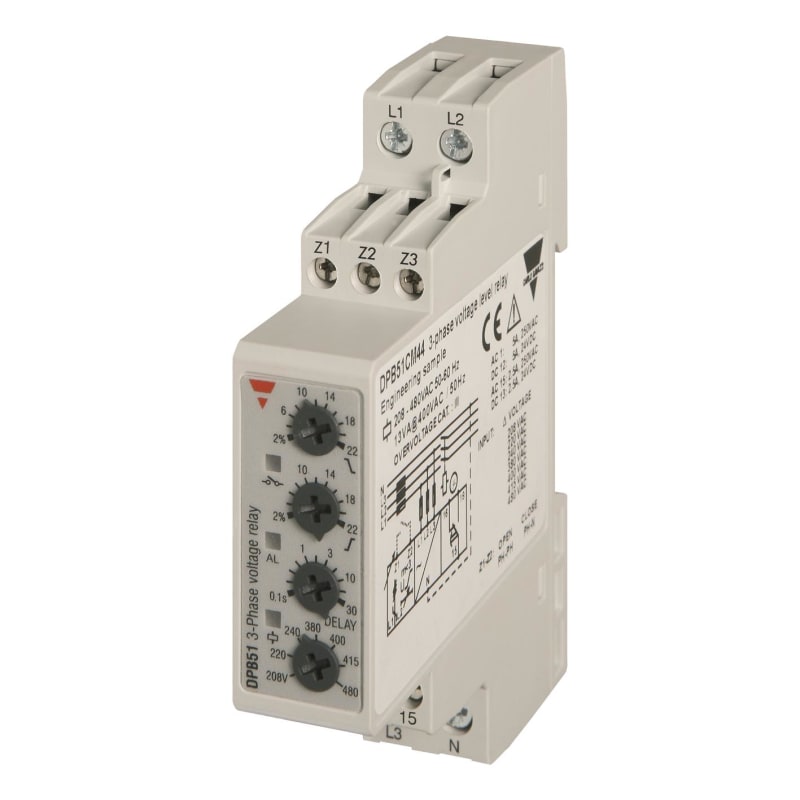

3-Phase supply monitoring relay (DPB51CM44)

3-phase mains monitoring relay Manufacturer description: 3-phase monitoring relay for phase loss, sequence, over and undervoltage, nominal range 208-480 V AC, delay on alarm 0.1-30 s, SPDT relay output, 17.5 mm DIN-rail housing.

Manufacturer part number (MPN)

DPB51CM44

EAN / GTIN

8030956038729

Sales unit

pcs

Package quantity

10 pcs

Mounting

Mini DIN-rail

Function

Phase loss; Phase sequence; Overvoltage; Undervoltage

3-phase voltage range

208-240 Vac; 208-480 Vac; 380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America; for China

Setting method through NFC

No

E-number (NO)

4367640

E-number (SE)

3864715

Type of electric connection

Screw connection

Voltage type for actuating

AC

Voltage measuring range

208–480 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

1

Width

17.5 mm

Height

90 mm

Depth

67.2 mm

Country of origin

China

HS Code

9030.90
