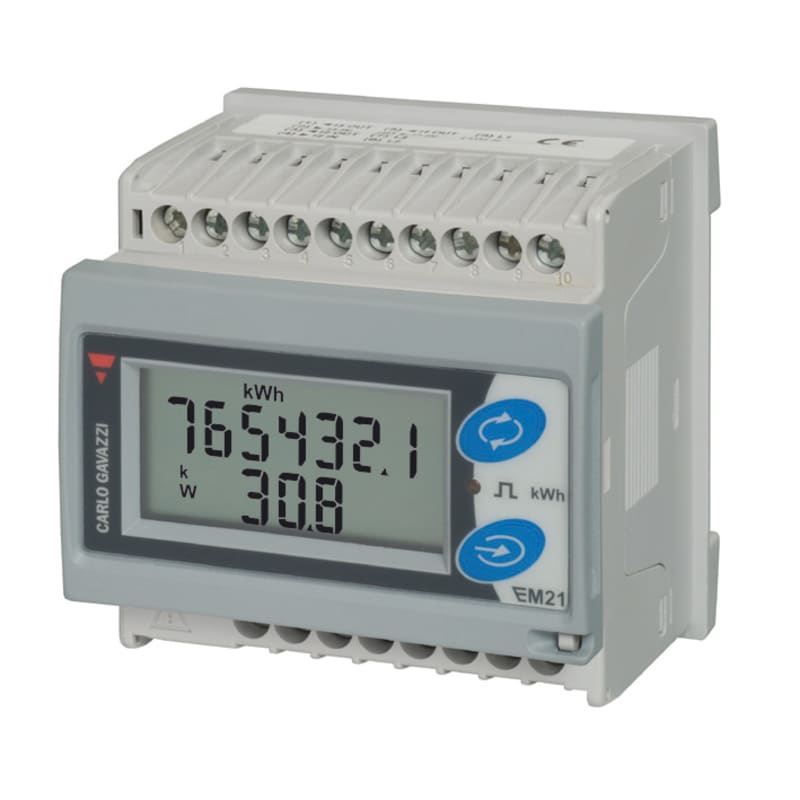

3-Phase kWh meter RS485
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM21072DAV53XOSX Manufacturer description: Three-phase Energy analyzer, 160 to 240 V L-N, 277 to 415 V L-L, 5 (6) A, RS485 Modbus RTU Pulse output. EM21072DAV53XOSX 3-phase meter.
Technical Specifications
- Manufacturer part number (MPN)
- EM21072DAV53XOSX
- Sales unit
- pcs
- El-nummer (NO)
- 8200676
- ETIM class
- SC001506
- Voltage inputs
- 1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase ( 4-wire), 240/415 V; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L
- Frequency
- 50Hz; 60Hz
- Current inputs
- 5 A current transformers
- Energy metering
- Consumption and generation
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America); UKCA (UK)
- E-number (NO)
- 8200676
- E-number (SE)
- 0921003
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Measurement transformer
- Type of indication
- Digital
- Max. current (Imax)
- 6 A
- Width in number of modular spacings
- 4
- Number of positions total (counter)
- 7
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Pulse output
- Electrical
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Nominal current (In)
- 5 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9031.80
Cross References
- SAP 1200454037
- Code 82514046
- El-nr 8200676
Product Documentation
