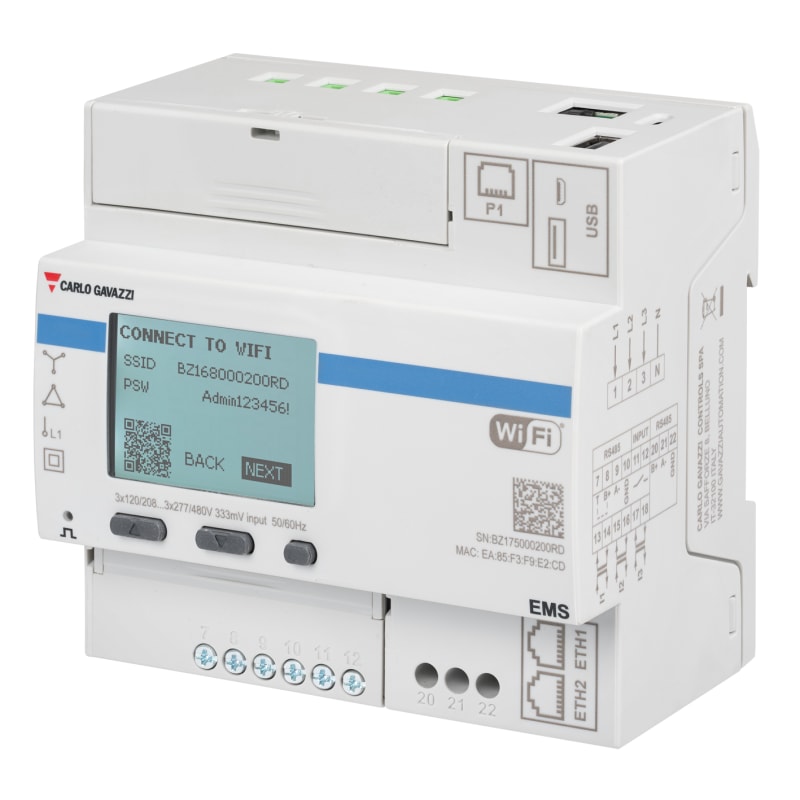

Energilogger with webserver 3-Phase (5A) (EMS10AV5S1X)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EMS10AV5S1X Manufacturer description: Three-phase all-in-one IoT meter, 120-277 V L-N, 208-480 V L-L, current transformer 5(6) A, self power supply, with RS485 Modbus master port, RS485 Modbus slave port, Digital input. Energy meter (5A) with logging, web-server and Gateway. Can connects up to 23 pcs 3-phase mustlinger.
Technical Specifications
- Manufacturer part number (MPN)
- EMS10AV5S1X
- EAN / GTIN
- 8054155008932
- Sales unit
- pcs
- Frequency
- 50Hz; 60Hz
- Current inputs
- direct connection up to 65 A
- Energy metering
- Consumption and generation
- Static output
- Alarm; Remote control
- Communication port and protocol
- Ethernet (Modbus TCP/IP); BACnet IP
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America)
- E-number (NO)
- 8200752
- E-number (SE)
- 0981056
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 90 mm
- Model
- Measurement transformer
- Height
- 90 mm
- Depth
- 44 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 10 W
- Max. current (Imax)
- 6 A
- Width in number of modular spacings
- 5
- Number of positions total (counter)
- 11
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Type of interface
- RS-485
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- Internal/external
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Domestic
- Pulse output
- Optical
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 120–277 V
- Nominal voltage (Un) L-L
- 208–480 V
- Nominal current (In)
- 5 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8054155008932
- SAP 1200966331
- Code 84275724
Product Documentation
