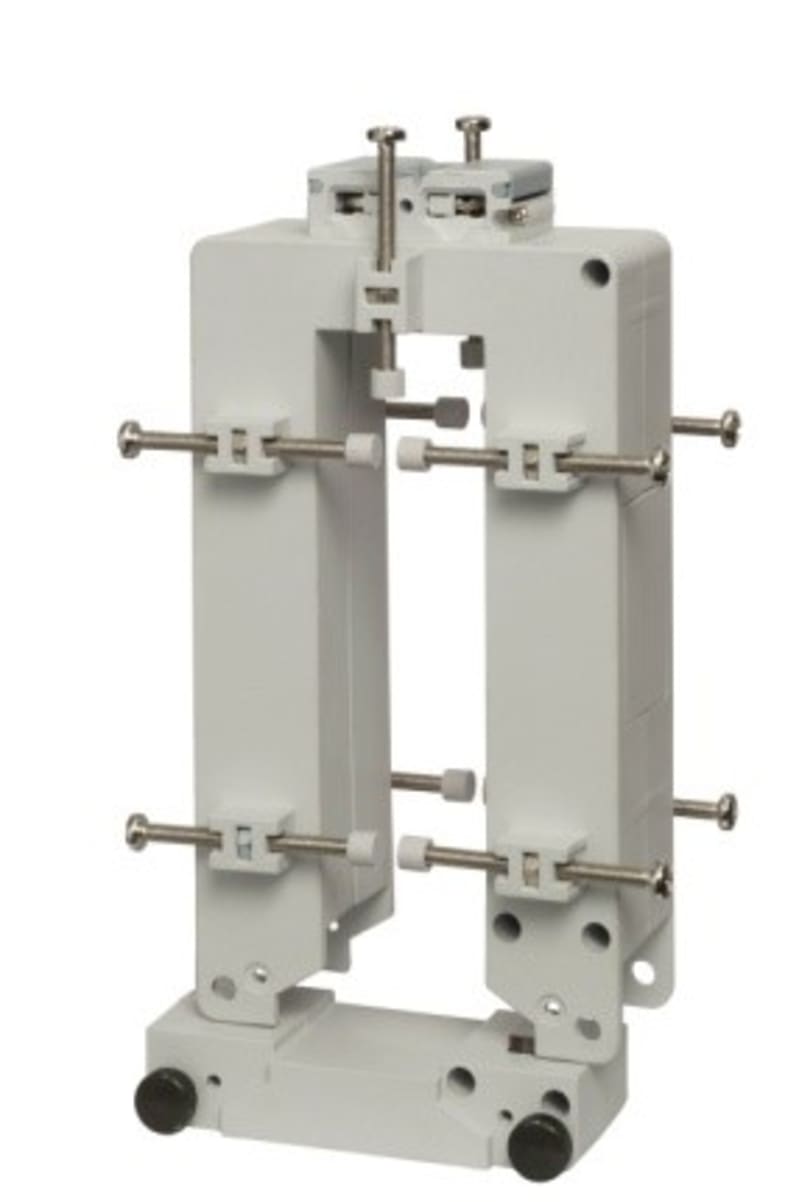

Split-core current transformer 1250 (CTD9S12505AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD9S12505AXXX Manufacturer description: Split core Current transformer 1250A/5A. CTD9S12505AXXX Divisible current transformer 1250/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD9S12505AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200602
- ETIM class
- SC002048
- Rated primary current
- 1250 A
- Output
- 5 A
- Hole diameter
- 36 mm (1.41 in)
- Max busbar width
- 36 mm (1.41 in)
- Accuracy class
- 1
- E-number (NO)
- 8200602
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 8 VA
- Overcurrent limiting factor
- FS 5
- Opening diameter
- 36 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453936
- Code 82514848
- El-nr 8200602
Product Documentation
