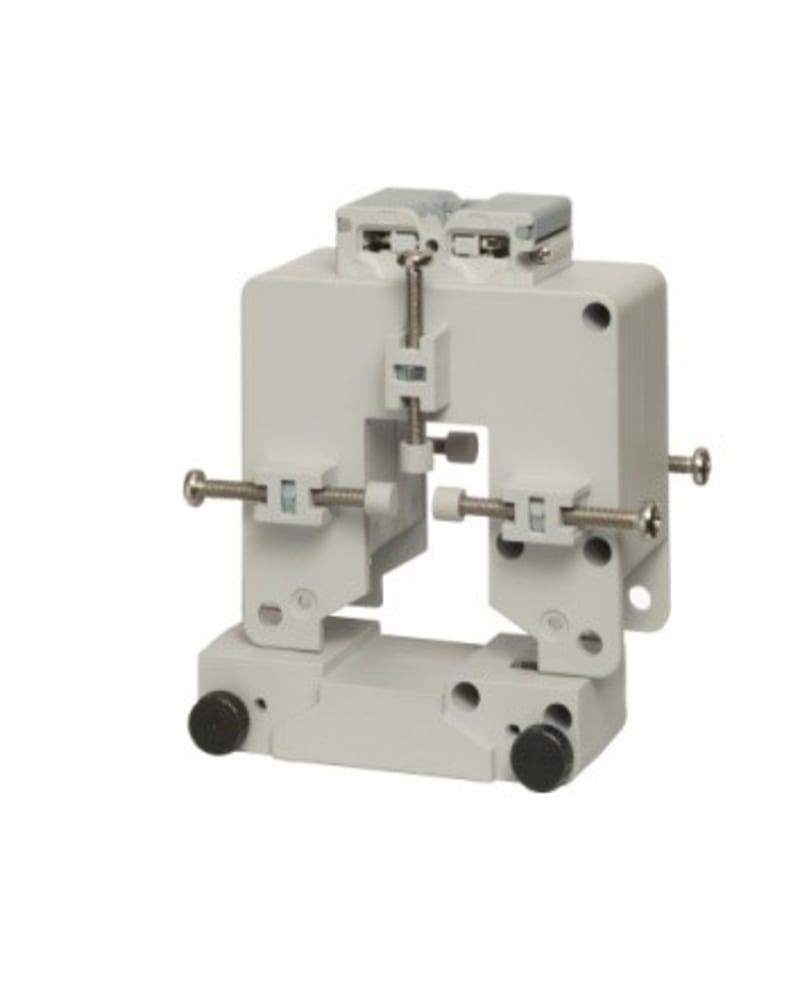

Split-core current transformer 250A (CTD5S2505AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD5S2505AXXX Manufacturer description: Split core Current transformer 250A/5A. CTD5S2505AXXX Divisible current transformer 250/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD5S2505AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200570
- ETIM class
- SC002048
- Rated primary current
- 250 A
- Output
- 5 A
- Hole diameter
- 26 mm (1.02 in)
- Max busbar width
- 26 mm (1.02 in)
- Accuracy class
- 1
- E-number (NO)
- 8200570
- E-number (SE)
- 4272558
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 1.5 VA
- Overcurrent limiting factor
- FS 5
- Opening diameter
- 26.7 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453904
- Code 82514891
- El-nr 8200570
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive transmitter M18 PNP NC plug connection (ICB18S30N20PCM1)
Carlo Gavazzi

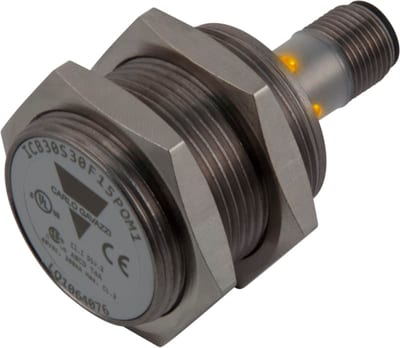

Inductive transmitter M30 PNP NO plug connection (ICB30S30F15POM1)
Carlo Gavazzi
Smart Dupline wireless repeater
4540279
Carlo Gavazzi
Split-core current transformer 1000 (CTD6S10005AXXX)
Carlo Gavazzi
Time Relay Multifunction (PMC01D230)
Carlo Gavazzi
Option Module for WM30/40 (MOR2)
Carlo Gavazzi

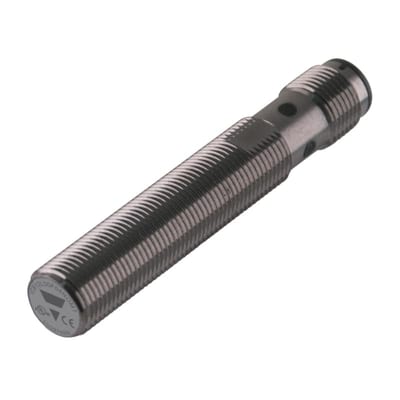

Inductive transmitter M12 PNP NO plug connection (ICB12L50F04POM1)
Carlo Gavazzi
Time Relay Multifunction (PMC01C230)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CTD5S2505AXXX?
- CTD5S2505AXXX can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CTD5S2505AXXX.
- What is the HS code for CTD5S2505AXXX?
- The customs tariff (HS) code for CTD5S2505AXXX is 8504.31.
- Who manufactures CTD5S2505AXXX?
- CTD5S2505AXXX is a Carlo Gavazzi product in the Electrical Components range.
- Is a datasheet available for CTD5S2505AXXX?
- Yes — the CTD5S2505AXXX datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CTD5S2505AXXX?
- The minimum order quantity is 1.
- Is CTD5S2505AXXX available?
- Yes — CTD5S2505AXXX is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
