Carlo Gavazzi

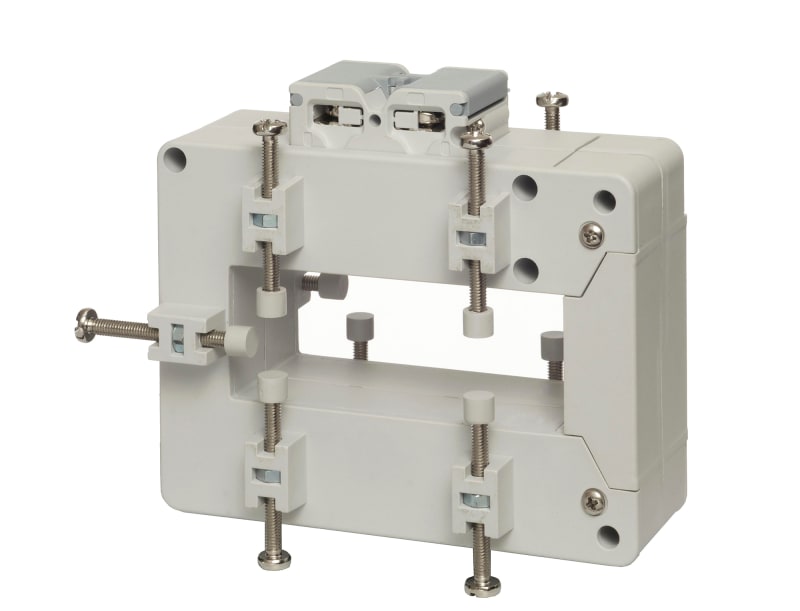

Current Transformer 1250/5A (CTD8H12505AXXX)
Part numberCTD8H12505AXXXHS code8504.31
Electrical Components
Current Transformers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD8H12505AXXX Manufacturer description: Solid core Current transformer 1250A/5A. CTD8H12505AXXX Current transformer 1250/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD8H12505AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200522
- ETIM class
- SC002048
- Rated primary current
- 1250 A
- Output
- 5 A
- Hole diameter
- 31 mm (1.22 in)
- Max busbar width
- 81 mm (3.18 in)
- Accuracy class
- 0.5
- E-number (NO)
- 8200522
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 12 VA
- Overcurrent limiting factor
- FS 5
- Opening diameter
- 31 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453828
- Code 82514753
- El-nr 8200522
Product Documentation
Document preview: Carlo Gavazzi CTD8H12505AXXX — Data Sheet (OEM, English)
More from Carlo Gavazzi
Carlo Gavazzi
Option Module for WM30/40 (MCBACIP)
Carlo Gavazzi
Current Transformer 125/5A (CTD3X1255AXXX)
Carlo Gavazzi
Current Transformer 500/5A (CTD4X5005AXXX)
Carlo Gavazzi
Current Relay 5A 230V
DIA01CB235A
Carlo Gavazzi
Option Module for WM30/40 (MFI6R4)
Carlo Gavazzi
Current Transformer 800/5A (CTD3X8005AXXX)
Carlo Gavazzi
Current Transformer 2000/5A (CTD8H20005AXXX)
Carlo Gavazzi
Current Transformer 2000/5A (CTD8Q20005AXXX)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CTD8H12505AXXX?
- CTD8H12505AXXX can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CTD8H12505AXXX.
- What is the HS code for CTD8H12505AXXX?
- The customs tariff (HS) code for CTD8H12505AXXX is 8504.31.
- Who manufactures CTD8H12505AXXX?
- CTD8H12505AXXX is a Carlo Gavazzi product in the Electrical Components range.
- Is a datasheet available for CTD8H12505AXXX?
- Yes — the CTD8H12505AXXX datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CTD8H12505AXXX?
- The minimum order quantity is 1.
- Is CTD8H12505AXXX available?
- Yes — CTD8H12505AXXX is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
