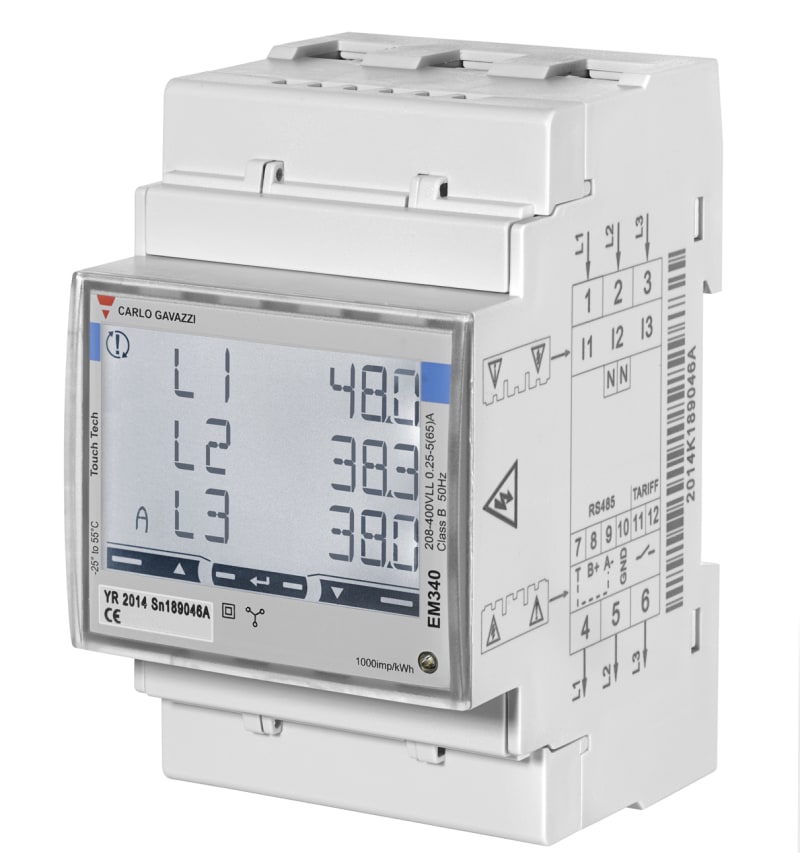

Carlo Gavazzi EM340 3-Phase Energy Analyzer with M-Bus

Carlo Gavazzi EM340DINAV23XM1X is a three-phase DIN-rail energy analyzer for direct measurement up to 65 A (In 5 A) at 120-230 V L-N / 208-400 V L-L. It records active and reactive energy in both consumption and generation, supports two-tariff operation with external tariff control and communicates via M-Bus. The 3-module IP51 meter is used for sub-metering in commercial and industrial installations.

Manufacturer part number (MPN)

EM340DINAV23XM1X

Sales unit

pcs

El-nummer (NO)

8200405

ETIM class

SC001506

Voltage inputs

2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L

Frequency

50Hz; 60Hz

Energy metering

Consumption and generation

Communication port and protocol

M-Bus

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); UKCA (UK)

E-number (NO)

8200405

E-number (SE)

0934003

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Type of indication

Digital

Max. current (Imax)

65 A

Width in number of modular spacings

3

Number of positions total (counter)

8

Type of meter

Electronic

Degree of protection (IP)

IP51

Type of interface

M-bus (wired)

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

External

Pulse output

Optical

Accuracy class

B

Pole type

Three conductor/four conductor

Nominal current (In)

5 A

Country of origin

China

HS Code

9030.90
