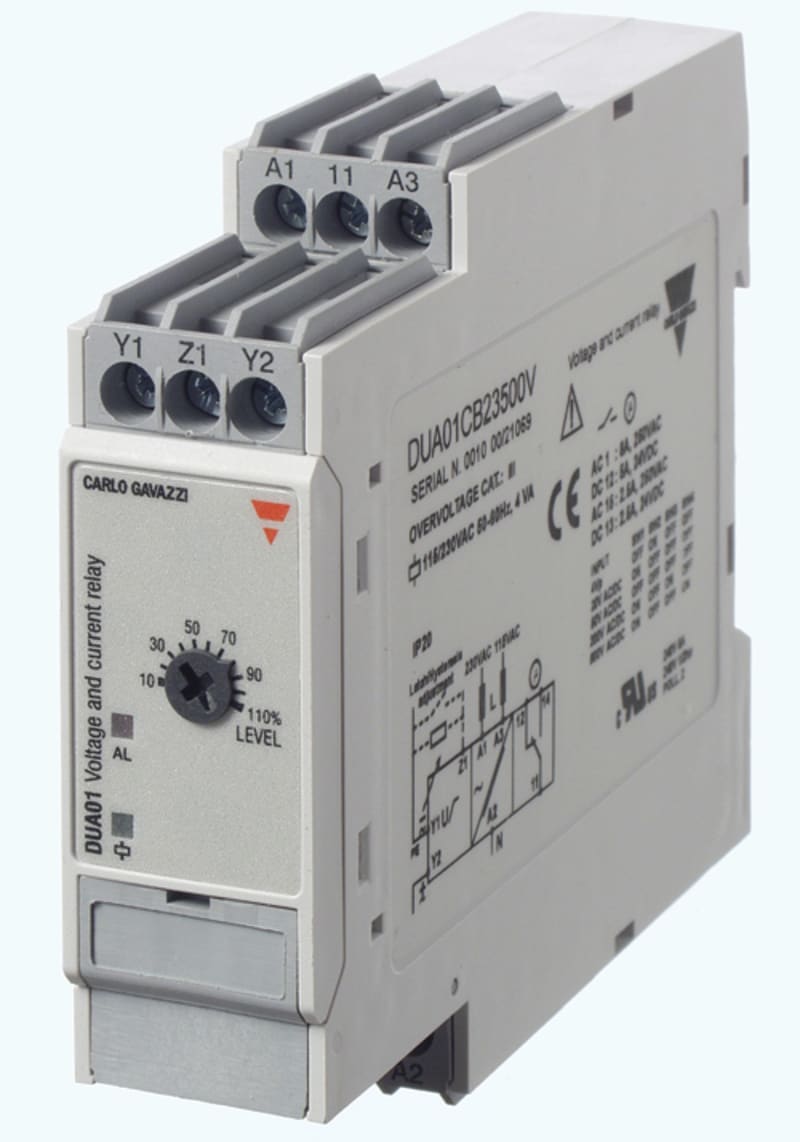

Voltage Relay AC/DC 0-500V, 230VAC (DUA01CB23500V)

Carlo Gavazzi DUA01CB23500V Manufacturer description: 1-phase AC/DC overvoltage or AC overcurrent monitoring relay, nominal range 2-500 V AC/DC or 0.4-4 Vp AC (for MI or MP), SPDT relay output, 22.5 mm DIN-rail housing. Carlo Gavazzi DUA01CB23500V.

Manufacturer part number (MPN)

DUA01CB23500V

EAN / GTIN

8030956000634

Sales unit

pcs

Supply Voltage

115/230 V AC

Mounting

Industrial DIN-rail

1-phase ac/dc voltage function

Overvoltage

Monitored voltage

Monitoring external voltage

1-phase voltage range

24-240 Vac/dc; 208-480 Vac; 2-500 Vac/dc

Output

1 relay

Time delay

No delay adjustment

E-number (NO)

4367557

E-number (SE)

3864674

Type of electric connection

Screw connection

Type of voltage measuring range

AC/DC

Rated control supply voltage AC 50 Hz

115–230 V

Rated control supply voltage AC 60 Hz

115–230 V

Voltage type for actuating

AC

Min. adjustable delay-on energization time

0.1 s

Min. adjustable off-delay time

0 s

Max. permitted off-delay time

0.3 s

Number of contacts as change-over contact

1

Width

22.5 mm

Height

80 mm

Depth

99.5 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956000634
• SAP 1000140303
• Code 8644914
