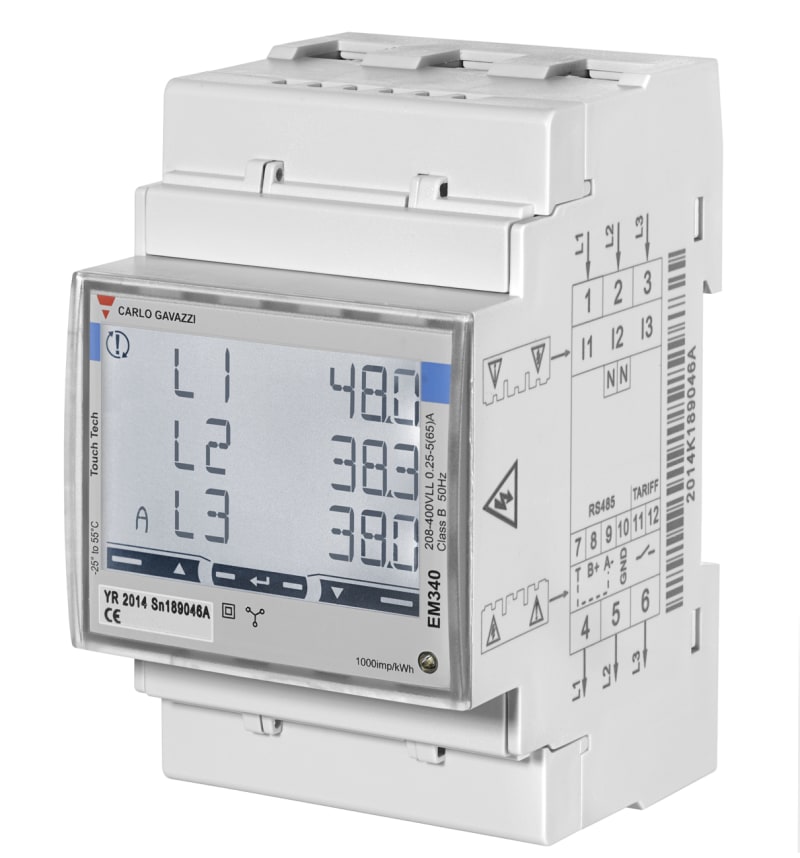

Carlo Gavazzi EM340 3-Phase Energy Analyzer RS485 Modbus RTU
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM340 three-phase energy analyzer for 120-230 V L-N / 208-400 V L-L systems, direct measurement to 65 A with digital indication. RS485 Modbus RTU communication, self-powered, DIN-rail (DRA) mounted at 3 modular widths. Accuracy class B, two-tariff with external control, IP50, S0 optical pulse output.
Technical Specifications
- Manufacturer part number (MPN)
- EM340DINAV23XS1X
- Sales unit
- pcs
- El-nummer (NO)
- 8200403
- ETIM class
- SC001506
- Voltage inputs
- 2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L
- Frequency
- 50Hz; 60Hz
- Energy metering
- Consumption and generation
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); UKCA (UK)
- E-number (NO)
- 8200403
- E-number (SE)
- 0934006
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Direct measurement
- Type of indication
- Digital
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 3
- Number of positions total (counter)
- 8
- Type of meter
- Electronic
- Degree of protection (IP)
- IP50
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Pulse output
- Optical
- Pulse type
- S0
- Accuracy class
- B
- Pole type
- Three conductor
- Nominal current (In)
- 5 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 9031.80
Cross References
- SAP 1200453989
- Code 82514005
- El-nr 8200403
Product Documentation
