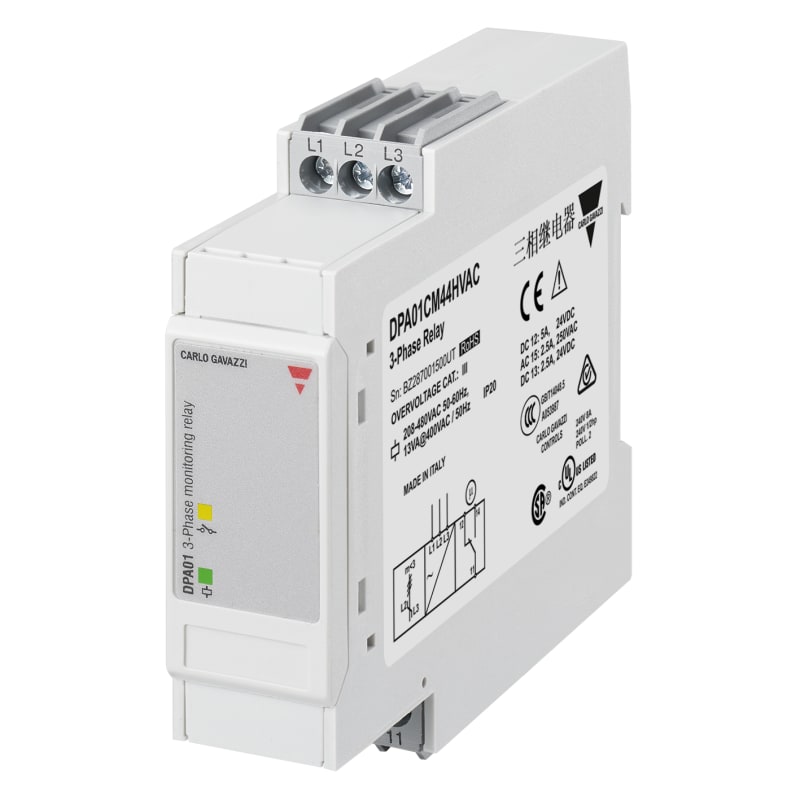

3-Phase relay 208-480VAC HVAC-design (DPA01CM44HVAC)

Carlo Gavazzi DPA01CM44HVAC Manufacturer description: 3-phase loss and sequence monitoring relay, nominal range 208-480 V AC, SPDT relay output, regenerated voltage detection, 22.5 mm DIN-rail housing. Phase sequence-/phase break relay 208-480VAC spark-free HVAC-version for compressors with flammable gas.

Manufacturer part number (MPN)

DPA01CM44HVAC

EAN / GTIN

8054155011949

Sales unit

pcs

Mounting

Industrial DIN-rail

Function

Phase loss; Phase sequence

3-phase voltage range

440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Type of output

1 SPDT relay

Time delay

No delay adjustment

Approvals, marks, declarations

for Australia

Setting method through NFC

No

E-number (NO)

4124536

External power supply required

No

Rated switch current

2 A

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

With detachable clamps

No

Phase sequence monitoring

Yes

Phase failure detection

Yes

Function under voltage detection

Yes

Function overvoltage detection

Yes

Phase imbalance monitoring

Yes

Min. adjustable delay-on energization time

0 s

Max. permitted delay-on energization time

0.1 s

Min. adjustable off-delay time

0 s

Max. permitted off-delay time

0.35 s

Number of contacts as change-over contact

1

Width

22.5 mm

Height

80 mm

Depth

99.5 mm

Country of origin

Italy

HS Code

9030.90
