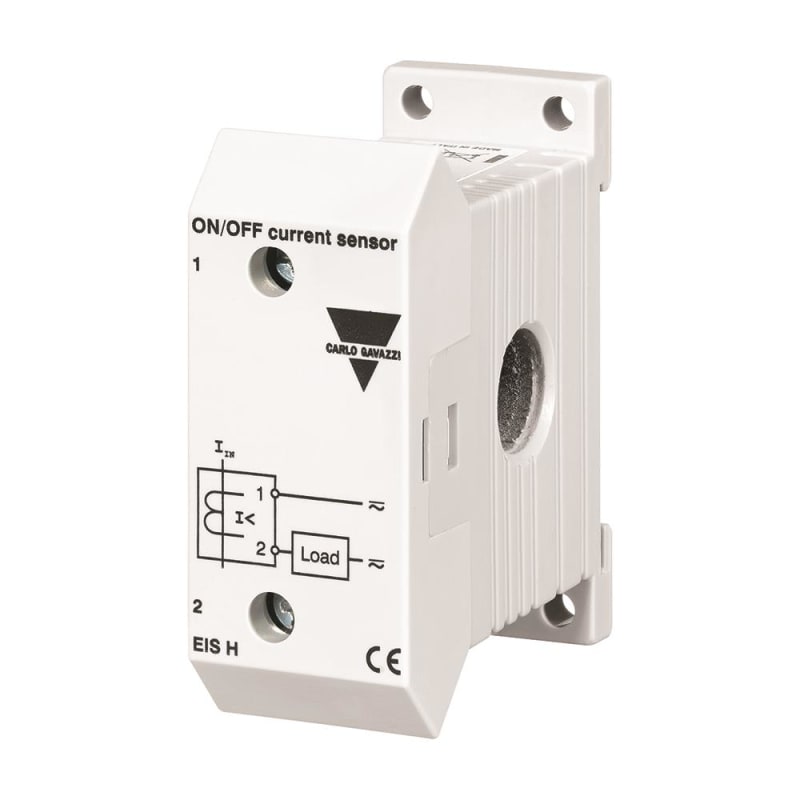

Carlo Gavazzi EISH400MA230 Self-Powered Current Sensor 0.4-60 A with SSR Output
Pricing
Request a quote
We reply within 24 hours
Product Description
The Carlo Gavazzi EISH400MA230 is a self-powered load ON/OFF current sensor with a solid-state output rated 250 V AC/DC at 0.5 A. It monitors AC line currents from 0.4 A to 60 A on any single phase at 50 Hz and provides undercurrent detection without requiring an external supply. The 22.5 mm DIN-rail housing suits control-cabinet installation for pump, fan and heater status monitoring where a compact, wire-through arrangement is preferred.
Technical Specifications
- Manufacturer part number (MPN)
- EISH400MA230
- EAN / GTIN
- 8030956090024
- Sales unit
- pcs
- Rated supply voltage
- Self-powered
- Mounting
- Industrial DIN-rail
- AC/DC current function
- ON/OFF monitoring; Undercurrent
- 1/3-phase current category
- Above 5 A
- Output
- Solid state
- Time delay
- No delay adjustment
- E-number (NO)
- 8010705
- E-number (SE)
- 3860997
- Initial value measuring range current
- 0.4 A
- End value measuring range current
- 60 A
- Frequency rated current
- 50 Hz
- Mounting method
- DIN rail (top hat rail) 35 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 8030956090024
- SAP 1200583152
- Code 82959137
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive transmitter M18 PNP NC 2M cable (ICB18L50N14PC)
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30S35N40POM1)
Carlo Gavazzi
SSR 3-F. 600VAC/40A 24-275VAC
RZ3A60A40P
Carlo Gavazzi
Safety Relay CM22D0A
Carlo Gavazzi
PTC-element 10W 110-250VAC/DC
RC016-10W
Carlo Gavazzi

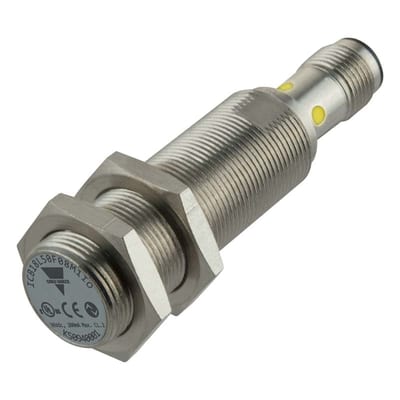

Inductive Transmitter M18 IO-LINK (ICB18L50F08M1IO)
Carlo Gavazzi

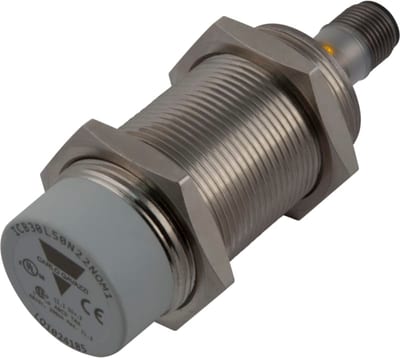

Inductive transmitter M30 PNP NO plug connection (ICB30L50N22POM1)
Carlo Gavazzi

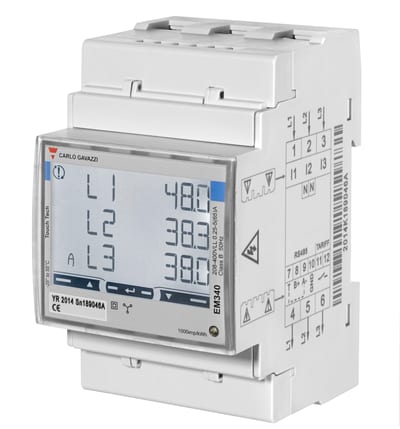

Carlo Gavazzi EM340 3-Phase Energy Analyzer with M-Bus
