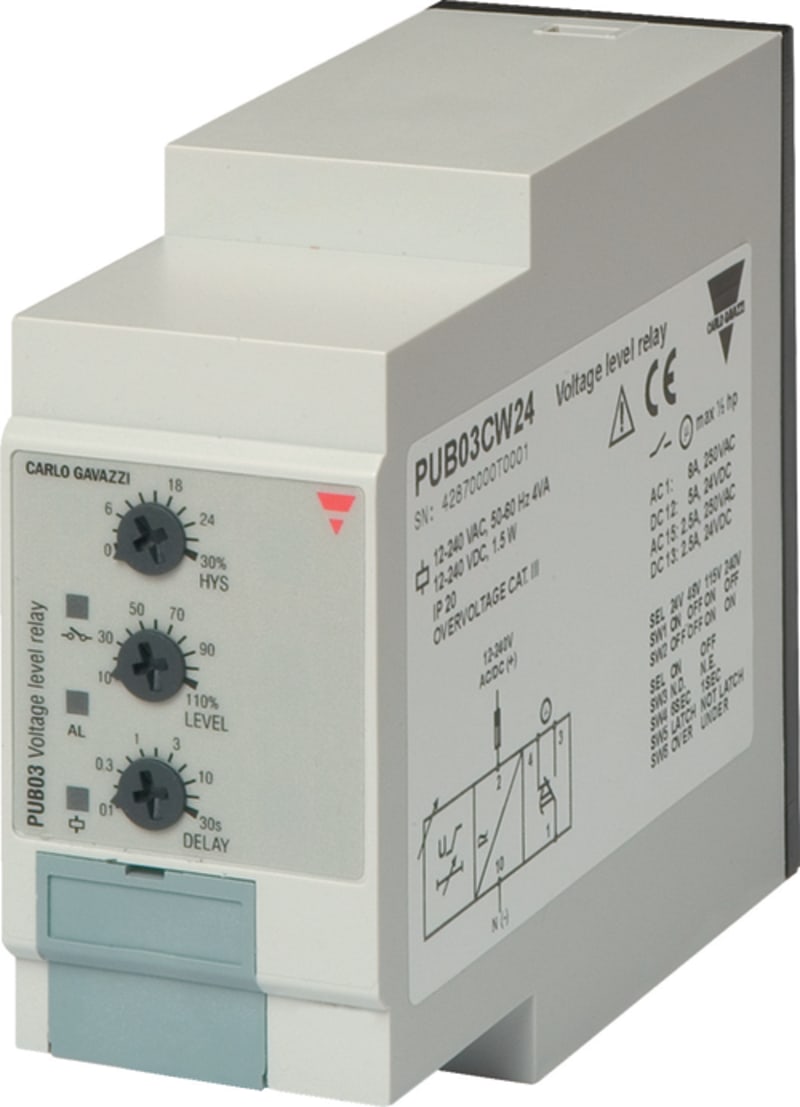

AC/DC undervoltage relay 12-240V (PUB03CW24)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PUB03CW24 Manufacturer description: 1-phase AC/DC over or undervoltage monitoring relay, nominal range 24/48/115/240 V AC/DC, SPDT relay output, 36 mm plug-in housing. PUB03CW24 Spenningsrelé.
Technical Specifications
- Manufacturer part number (MPN)
- PUB03CW24
- EAN / GTIN
- 8030956016567
- Sales unit
- pcs
- Supply Voltage
- Self-powered
- Mounting
- Plug-in
- 1-phase ac/dc voltage function
- Overvoltage; Undervoltage; Over or undervoltage
- Monitored voltage
- Monitoring own power supply
- 1-phase voltage range
- 12-24 Vdc; 38-58 Vdc; 24-240 Vac/dc
- Output
- 1 relay
- Time delay
- Delay on alarm
- E-number (NO)
- 4367500
- Type of electric connection
- Plug-in connection
- Type of voltage measuring range
- AC/DC
- Rated control supply voltage AC 50 Hz
- 12–240 V
- Rated control supply voltage AC 60 Hz
- 12–240 V
- Rated control supply voltage DC
- 12–240 V
- Voltage type for actuating
- AC/DC
- Min. adjustable delay-on energization time
- 0.1 s
- Max. permitted delay-on energization time
- 30 s
- Min. adjustable off-delay time
- 0.1 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- Width
- 36 mm
- Height
- 80 mm
- Depth
- 94 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956016567
- SAP 1000140996
- Code 8645639
Product Documentation
