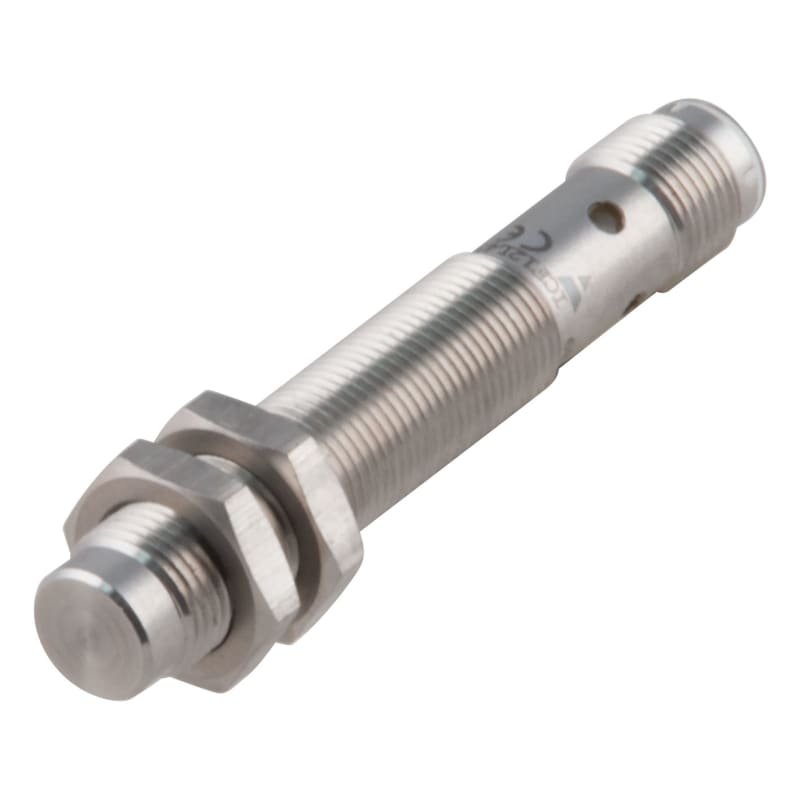

Inductive Transmitter ICF12 M. Pluggable IO-LINK (ICF12L45N08M1IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICF12L45N08M1IO Manufacturer description: Inductive sensor, M12 St. steel, M12-plug, Sn 8mm, Non-flush mount, Long body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 200 mA, Max switching freq. 500 Hz, Op. temp. -40C to +85C, Max pressure 260 bar, IP68, IP69K, IO-Link. In/O-link inductive transmitter helkapslet in stainless steel. M12 in unshielded utf. With plug connection.
Technical Specifications
- Manufacturer part number (MPN)
- ICF12L45N08M1IO
- EAN / GTIN
- 5709870405322
- Sales unit
- pcs
- Rated operating distance
- 8 mm
- Installation type
- Non-flush
- Diameter
- M12
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4341941
- Length of sensor
- 70 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 8 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870405322
- SAP 1200706230
- Code 83745857
Product Documentation
