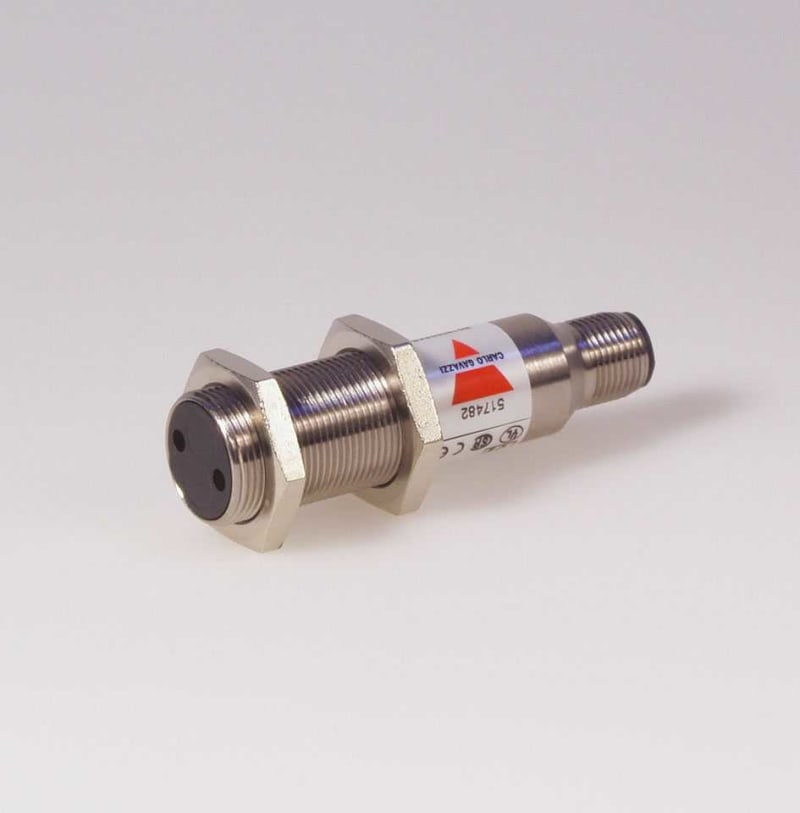

FOTO.Pole M18,PNP,NO+NC,Plug (EP1820PPAS-1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EP1820PPAS-1 Manufacturer description: Polarized Retro-reflective Photoelectric Sensor, Range 2000mm, red polarized modulated light 660nm, Power Supply 10-40VDC, PNP Output, NO and NC, Light and Dark Switching, M12 Plug. EP1820PPAS-1 Photocells with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- EP1820PPAS-1
- EAN / GTIN
- 5709870169897
- Sales unit
- pcs
- Output type
- PNP
- Output function
- Complementary (NO+NC)
- Connection Type
- Connector M12
- Housing style
- Cylindrical, threaded barrel
- Housing Material
- Metal
- Type of light
- Polarized red light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67
- Rated Operetional voltage UB at DC
- 10 V ... 40 V
- E-number (NO)
- 4351093
- Rated switching distance
- 2000 mm
- Max. switching distance
- 2000 mm
- Max. output current
- 200 mA
- With reflector
- No
- Setting procedure
- Manual adjustment
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Anticoincidence
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 55 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 200 mA
- Min. reflector distance
- 200 mm
- Response time
- 3.2 ms
- Switching frequency
- 100 Hz
- Type of safety according to IEC 61496-1
- 1
- Switching voltage of OSSD at state "high"
- 40 V
- Voltage type
- DC
- Laser protection class
- None
- Wavelength of the sensor
- 660 nm
- Light dot
- 17665 mm²
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870169897
- SAP 1000653360
- Code 8642330
Product Documentation
