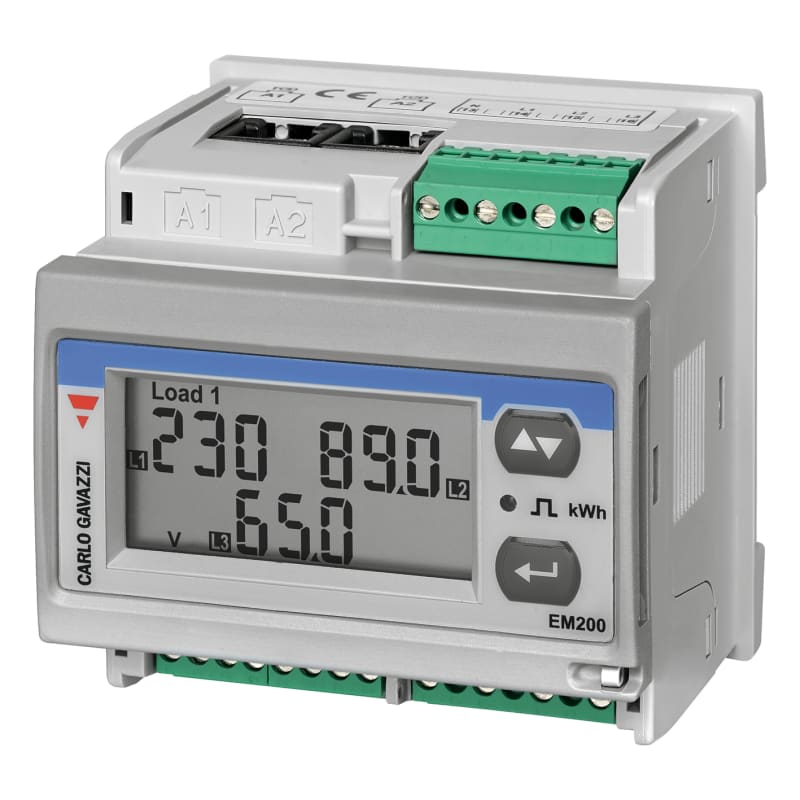

Double 3-phase meter RS485/pulse (EM27172DMV53XOSX)

Carlo Gavazzi EM27172DMV53XOSX Manufacturer description: Multi-load Energy analyzer, 160 to 240 V L-N, 277 to 415 V L-L, RS485 Modbus RTU, 2 Pulse outputs. EM27172DMV53XOSX Double meter.

Manufacturer part number (MPN)

EM27172DMV53XOSX

Sales unit

pcs

El-nummer (NO)

8200663

ETIM class

SC001506

Voltage inputs

1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L

Frequency

50Hz; 60Hz

Multi-load sensor type

split core

Monitored loads per meter

1-phase loads: up to 6; 3-phase loads: up to 2

Energy metering

Consumption; Consumption and generation

Static output

Pulse

Communication port and protocol

RS485 (Modbus RTU)

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); cULus (North America); UKCA (UK)

E-number (NO)

8200663

Mounting method

DRA (DIN-rail adaptor)

Model

Measurement transformer

Type of indication

Digital

Max. current (Imax)

6 A

Width in number of modular spacings

4

Number of positions total (counter)

7

Type of meter

Electronic

Degree of protection (IP)

IP40

Type of interface

None

Energy type

Effective power and reactive power

Pulse output

Electrical

Accuracy class

B

Pole type

Three conductor/four conductor

Nominal current (In)

5 A

Country of origin

Italy

HS Code

9030.90
