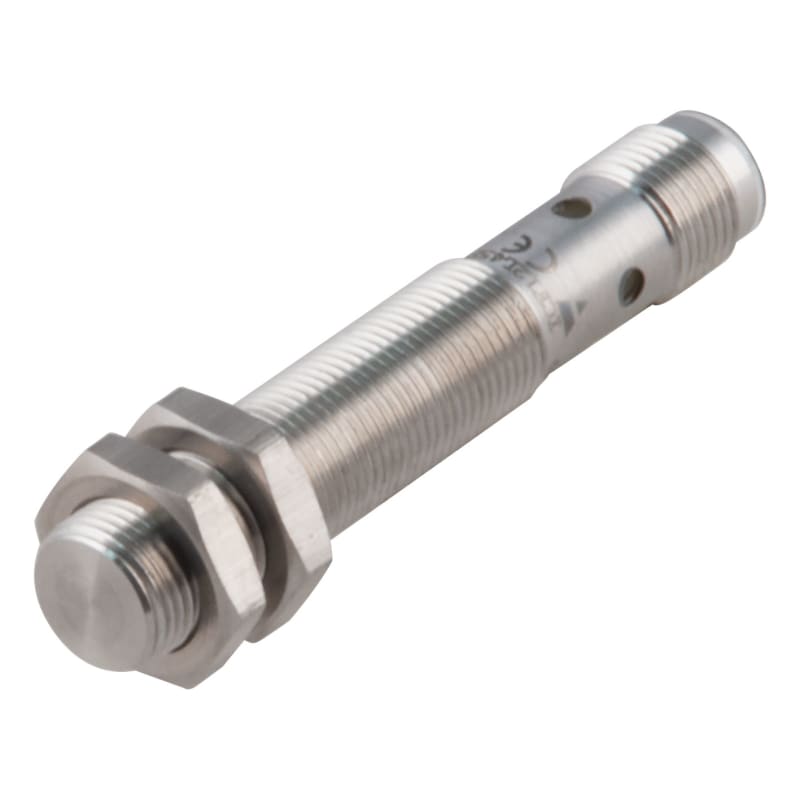

Inductive Transmitter ICF12 M. Pluggable IO-LINK (ICF12L45F04M1IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICF12L45F04M1IO Manufacturer description: Inductive sensor, M12 St. steel, M12-plug, Sn 4mm, Flush mount, Long body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 200 mA, Max switching freq. 500 Hz, Op. temp. -40C to +85C, Max pressure 260 bar, IP68, IP69K, IO-Link. In/O-link inductive transmitter helkapslet in stainless steel. M12 in shielded version. With plug connection.
Technical Specifications
- Manufacturer part number (MPN)
- ICF12L45F04M1IO
- EAN / GTIN
- 5709870405223
- Sales unit
- pcs
- Rated operating distance
- 4 mm
- Installation type
- Flush
- Diameter
- M12
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4341939
- Length of sensor
- 70 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 4 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870405223
- SAP 1200706228
- Code 83745713
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Carlo Gavazzi EISH400MA230 Self-Powered Current Sensor 0.4-60 A with SSR Output
Carlo Gavazzi
Inductive transmitter M18 PNP NC 2M cable (ICB18L50N14PC)
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30S35N40POM1)
Carlo Gavazzi
SSR 3-F. 600VAC/40A 24-275VAC
RZ3A60A40P
Carlo Gavazzi
Safety Relay CM22D0A
Carlo Gavazzi
PTC-element 10W 110-250VAC/DC
RC016-10W
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18L50F08M1IO)
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30L50N22POM1)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ICF12L45F04M1IO?
- ICF12L45F04M1IO can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is ICF12L45F04M1IO.
- What is the HS code for ICF12L45F04M1IO?
- The customs tariff (HS) code for ICF12L45F04M1IO is 9030.90.
- Who manufactures ICF12L45F04M1IO?
- ICF12L45F04M1IO is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for ICF12L45F04M1IO?
- Yes — the ICF12L45F04M1IO datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ICF12L45F04M1IO?
- The minimum order quantity is 1.
- Is ICF12L45F04M1IO available?
- Yes — ICF12L45F04M1IO is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
