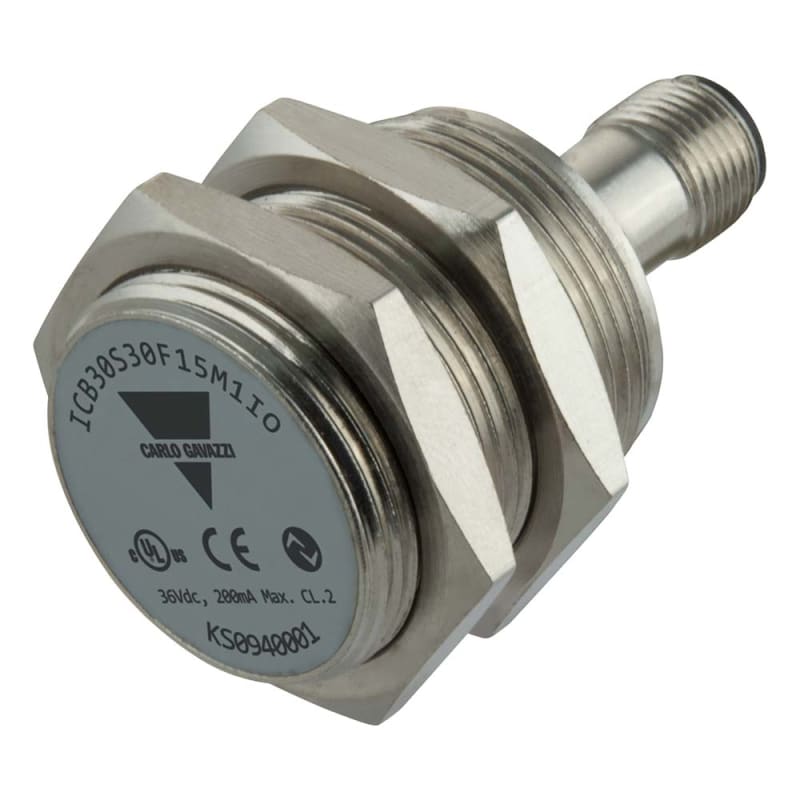

Inductive Transmitter M30 IO-LINK (ICB30S30F15M1IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB30S30F15M1IO Manufacturer description: Inductive proximity sensor, M30 Nickel-Plated Brass, M12 plug, Sn 15mm, Flush mount, Short body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1 kHz, Operating temperature -40C - +70C, IP67, IO-Link. Inductive transmitter IO link ICB30S30F15M1IO.
Technical Specifications
- Manufacturer part number (MPN)
- ICB30S30F15M1IO
- EAN / GTIN
- 5709870394596
- Sales unit
- pcs
- Rated operating distance
- 15 mm
- Installation type
- Flush
- Diameter
- M30
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4319143
- E-number (SE)
- 3832463
- Width sensor
- 1 mm
- Height of sensor
- 1 mm
- Length of sensor
- 30 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 15 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870394596
- SAP 1200292995
- Code 82264136
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Current Relay 5A 230V 11-Pin
PIA01CB235A
Carlo Gavazzi
Pulse/pause relay 1XRELEUTG. 22,5mm
DCB01CM24
Carlo Gavazzi
Photoelectric Sensor sender M14 for PAM03
MOFT20-M14-8-PAM03
Carlo Gavazzi

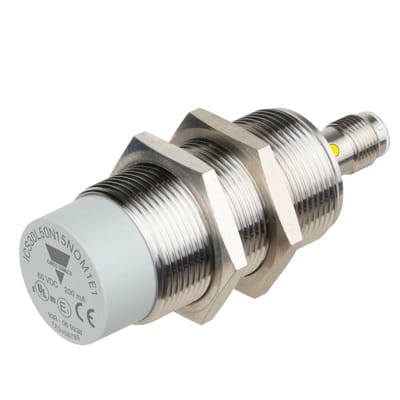

IND Transmitter M30 PNP NC Unshielded PLUG
4316523
Carlo Gavazzi

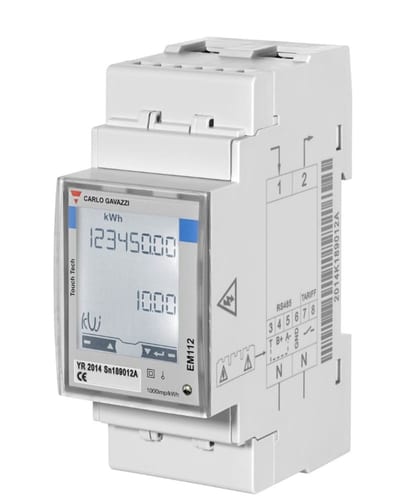

Meter 1-Phase 100A with RS485 (EM112DINAV01XS1PFB)
Carlo Gavazzi

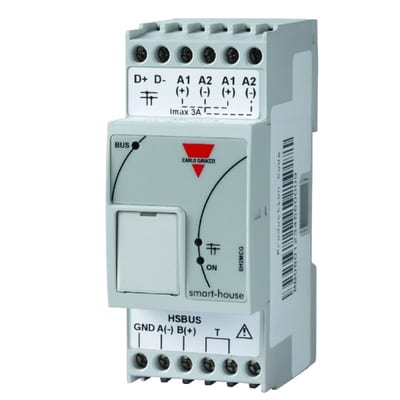

Dupline Kanalgenerator (SH2DUG24)
Carlo Gavazzi
Current Transformer 500A
MI500
Carlo Gavazzi

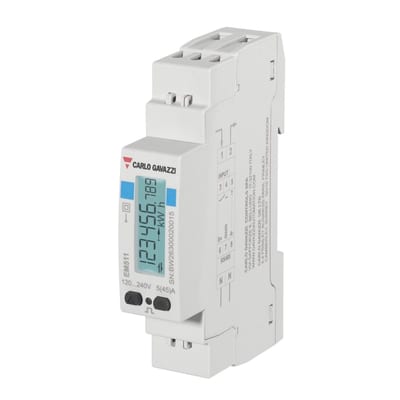

Carlo Gavazzi EM511DINAV81XO1X Single-Phase Energy Meter, 45 A, Pulse Output
