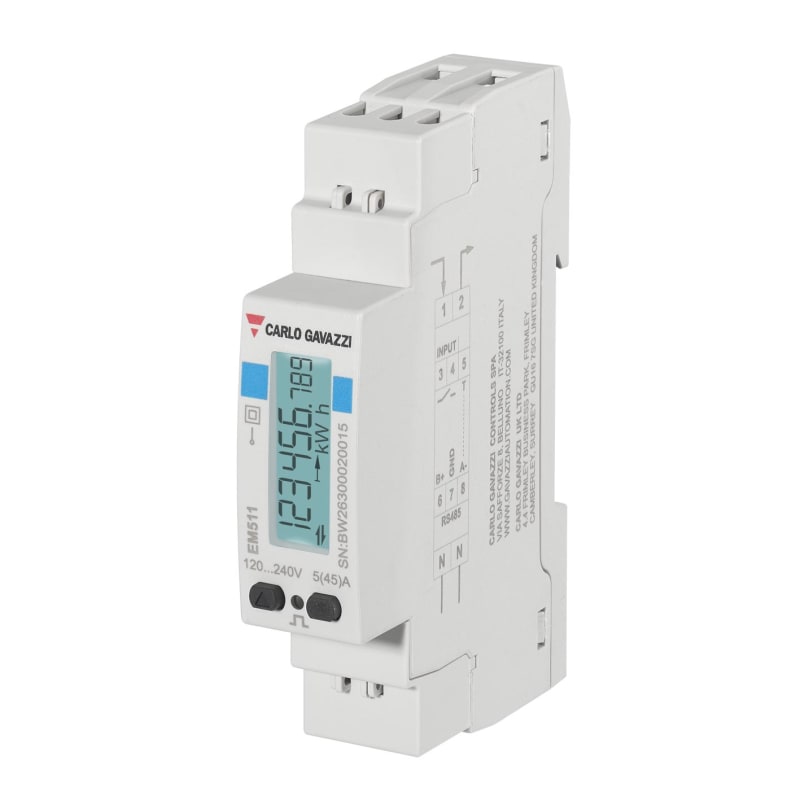

Carlo Gavazzi EM511DINAV81XO1X Single-Phase Energy Meter, 45 A, Pulse Output

Carlo Gavazzi EM511DINAV81XO1X is a single-phase energy analyzer for direct connection up to 45 A, with voltage inputs from 120 to 240 V L-N and a digital pulse output plus digital input. DIN-rail mounted at one modular spacing, self-powered, IP20 with 60 Hz frequency support. Approved to CE, cULus and UKCA with MID Class C accuracy.

Manufacturer part number (MPN)

EM511DINAV81XO1X

EAN / GTIN

8054155003180

Sales unit

pcs

Voltage inputs

1-phase (2-wire), 120 V L-N; 1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N

Frequency

60Hz

Current inputs

direct connection up to 45 A

Energy metering

Consumption and generation

Static output

Alarm; Pulse; Remote control

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); cULus (North America); UKCA (UK)

E-number (NO)

8201179

E-number (SE)

0951102

Mounting method

DRA (DIN-rail adaptor)

Width

18 mm

Model

Direct measurement

Height

90 mm

Depth

58 mm

Suitable for

Purchase/supply

Type of indication

Digital

Power consumption

0.6 W

Max. current (Imax)

45 A

Width in number of modular spacings

1

Number of positions total (counter)

9

Type of meter

Electronic

Degree of protection (IP)

IP20

Type of interface

None

Energy type

Effective power and reactive power

Tariff type

One-tariff

Tariff control

External

Approval

Measuring Instruments Directive

Pulse output

Electrical

Pulse type

S0

Accuracy class

C

Pole type

Single phase

Nominal current (In)

45 A

Country of origin

Italy

HS Code

9033.00

• EAN 8054155003180
• SAP 1200714241
• Code 83813605
