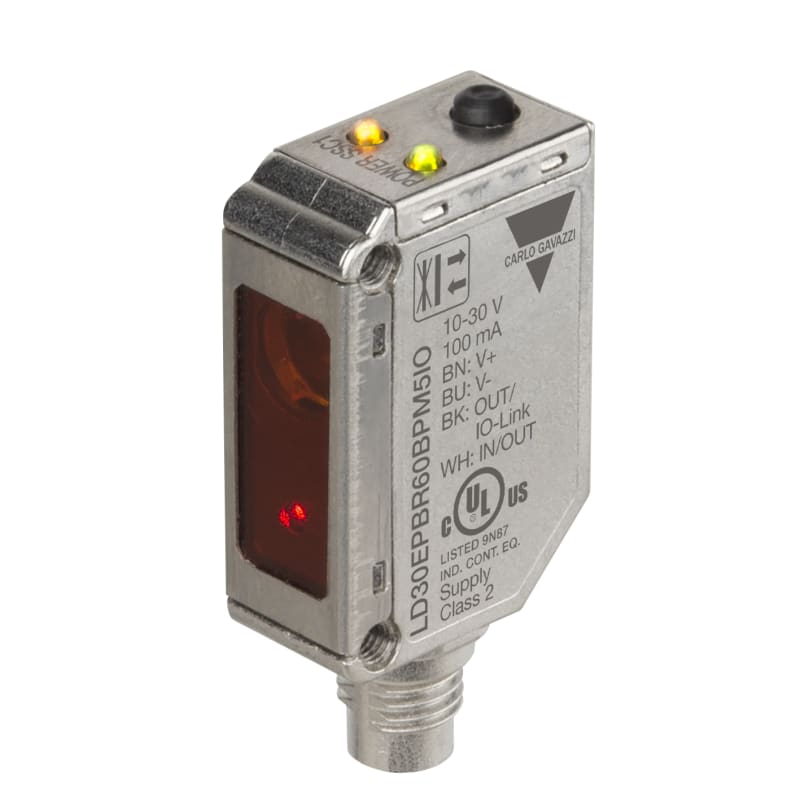

Photoelectric Sensor laser direct IO-Link 600mm (LD30EPBR60BPM5IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi LD30EPBR60BPM5IO Manufacturer description: Photoelectric Laser Sensor with Adjustable Back/Foreground Suppression, IO-Link, Range: 0-600mm, Red Laser Class 1, 650nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8-4 Pin Plug, 11x31,5x21mm housing Stainless Steel, IP67, P68, IP69K, ECOLAB. Laserfotocelle. Direct-sensing max.. 600mm with for-/background suppression. IO-link utf. Pluggable.
Technical Specifications
- Manufacturer part number (MPN)
- LD30EPBR60BPM5IO
- EAN / GTIN
- 5709870407012
- Sales unit
- pcs
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Connector M8
- Housing type
- Rectangular
- Housing material
- Metal
- Emitted light
- Laser diode, red light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67, IP68, IP69K
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4304670
- Rated switching distance
- 600 mm
- Max. switching distance
- 600 mm
- Max. output current
- 100 mA
- With reflector
- No
- Setting procedure
- Parameterization
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 3
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Height of sensor
- 30 mm
- Length of sensor
- 20 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 20 mm
- Response time
- 10 ms
- Switching frequency
- 450 Hz
- Type of safety according to IEC 61496-1
- 4
- Switching voltage of OSSD at state "high"
- 30 V
- Voltage type
- DC
- Laser protection class
- Class 1
- Wavelength of the sensor
- 650 nm
- Type of light
- Laser diode, red light
- Light dot
- 1 mm²
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5709870407012
- SAP 1200735757
- Code 83867527
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Photoelectric Sensor IO link pole 6M cable IP69K SS
PD30ETPR60BPA2IO
Carlo Gavazzi
SSR 15A@40°C, 42-600VAC (RGC1A60A15KKE)
Carlo Gavazzi
Capacitive transmitter, M18, AC, NC, sn 8mm
CA18CLF08TC
Carlo Gavazzi
1-Phase relay over-/underspg. 208-240V
DUA55CM44
Carlo Gavazzi
Photocell IO link REFLECTOR 6M M8 plug
PD30CTRR60BPM5IO
Carlo Gavazzi
Regulator/thermostat 230VAC 2 relay output
MVR-10-M-ZR0-0-5-1-U0
Carlo Gavazzi
Magnet Switch M8,NO+NC
FMMS1
Carlo Gavazzi
Power supply 120W 24VDC
SPDM241201
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LD30EPBR60BPM5IO?
- LD30EPBR60BPM5IO can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is LD30EPBR60BPM5IO.
- What is the HS code for LD30EPBR60BPM5IO?
- The customs tariff (HS) code for LD30EPBR60BPM5IO is 8536.50.
- Who manufactures LD30EPBR60BPM5IO?
- LD30EPBR60BPM5IO is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for LD30EPBR60BPM5IO?
- Yes — the LD30EPBR60BPM5IO datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LD30EPBR60BPM5IO?
- The minimum order quantity is 1.
- Is LD30EPBR60BPM5IO available?
- Yes — LD30EPBR60BPM5IO is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
