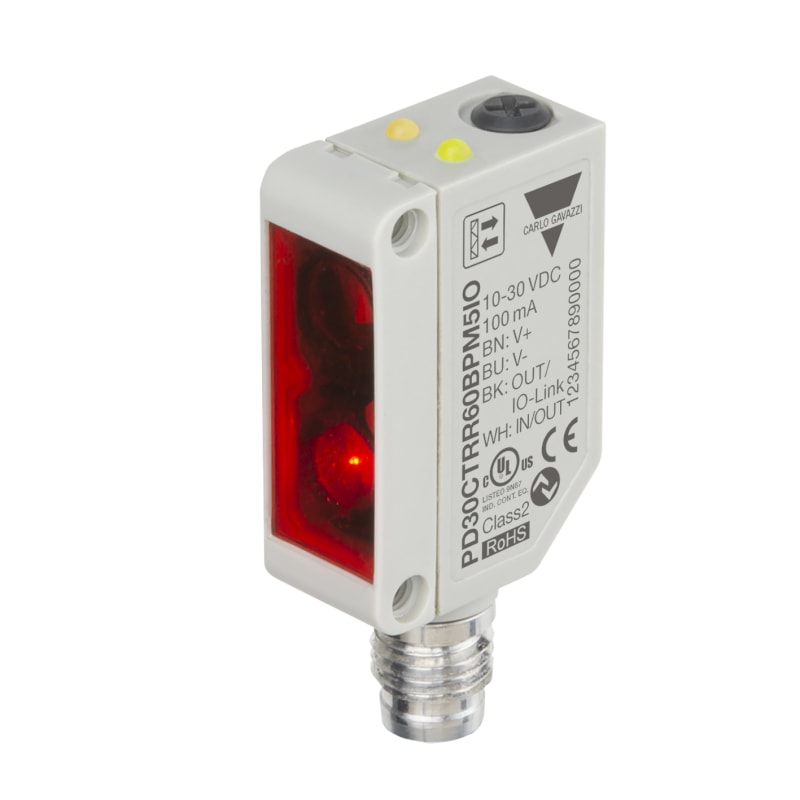

Photocell IO link REFLECTOR 6M M8 plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PD30CTRR60BPM5IO Manufacturer description: Retro-reflective Photoelectric Sensor, IO-Link, Range 6000mm, red modulated light 620nm, Power Supply 10-30VDC, NPN/PNP/Push-pull, N.O., N.C., M8 Plug, 10x30x20mm housing Plastic, IP67. Photocell IO link REFLECTOR 6M M8 plug plastic.
Technical Specifications
- Manufacturer part number (MPN)
- PD30CTRR60BPM5IO
- EAN / GTIN
- 5709870398778
- Sales unit
- pcs
- Rated operating distance
- 6000 mm
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection Type
- Connector M8
- Housing style
- Rectangular
- Housing Material
- Plastic
- Type of light
- Polarity free red light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67
- Rated Operetional voltage UB at DC
- 10 V ... 30 V
- E-number (NO)
- 4301295
- Rated switching distance
- 6000 mm
- Max. switching distance
- 6000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Setting procedure
- Parameterization
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Height of sensor
- 30 mm
- Length of sensor
- 17 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 100 mm
- Response time
- 0.5 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- DC
- Laser protection class
- None
- Wavelength of the sensor
- 620 nm
- Light dot
- 17662 mm²
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 5709870398778
- SAP 1200583191
- Code 82959257
