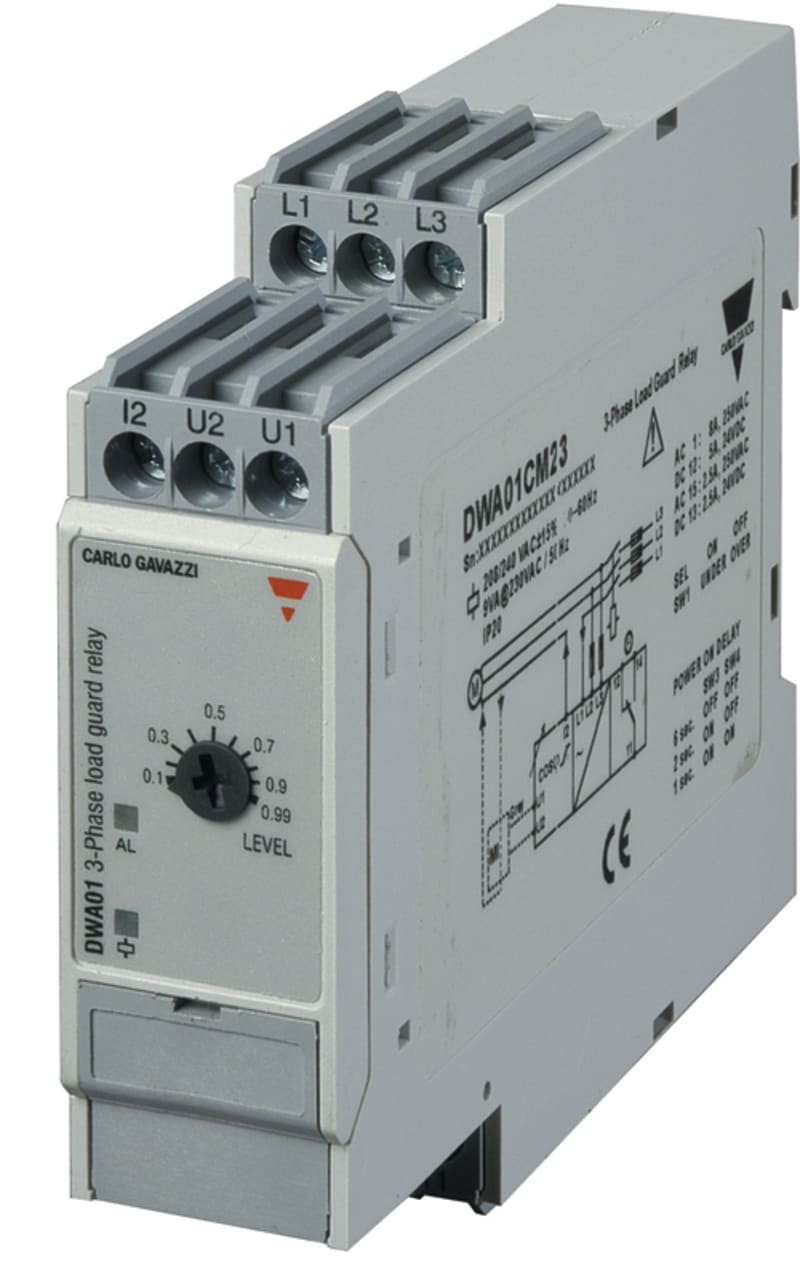

Motor Load Monitor cos. phi 380-480V (DWA01CM485A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi DWA01CM485A Manufacturer description: 3-phase cos phi monitoring relay, measuring range up to 5 A or with MI current transformers, 1 SPDT relay output, 22.5 mm DIN-rail housing. DWA01CM485A Belastningsrelé.
Technical Specifications
- Manufacturer part number (MPN)
- DWA01CM485A
- EAN / GTIN
- 8030956006643
- Sales unit
- pcs
- Mains voltage
- 380-480 V AC
- Mounting
- Industrial DIN-rail
- Power function
- Cos phi
- 3-phase voltage range
- 380-480 Vac
- Time delay
- No delay adjustment
- Output
- 1 x SPDT change-over contact
- Type of electric connection
- Screw connection
- With approval according to UL
- Yes
- E-number (NO)
- 4134841
- E-number (SE)
- 3864703
- Rated control supply voltage AC 50 Hz
- 380–480 V
- Rated control supply voltage AC 60 Hz
- 380–480 V
- Voltage type for actuating
- AC
- Rated voltage
- 380–480 V
- Measurement current
- 0.5–5 A
- Number of phases
- 3
- Min. adjustable delay-on energization time
- 0 s
- Min. adjustable off-delay time
- 0 s
- Number of contacts as change-over contact
- 1
- Width
- 22.5 mm
- Height
- 80 mm
- Depth
- 99.5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956006643
- SAP 1000140693
- Code 849438
Product Documentation
