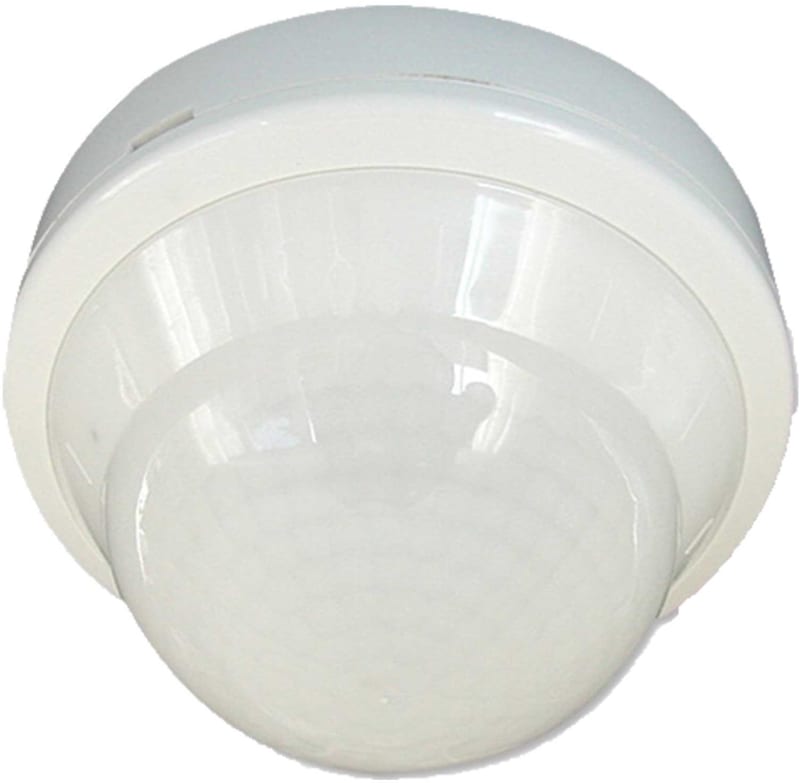

UK Närvarodetektor PD4-1C-UTP
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 92144 Motion detector for surface-mounted mounting in ceiling with a channel for control of light.
Technical Specifications
- Manufacturer part number (MPN)
- 92144
- EAN / GTIN
- 4007529921447
- Sales unit
- pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Model
- Movement sensor
- Height
- 65 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switching-on delay
- 1 s
- Switch-off delay
- 1 s
- Built-in depth
- 65 mm
- Diameter
- 109 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 5 m
- Max. reach sideways
- 5 m
- Max. switching power
- 2300 W
- Temperature
- -25–50 °C
- Max. starting current
- 165 A
- Material
- Plastic
- Diameter reach on floor
- 10 m
- RAL-number (similar)
- 9010
- Control current
- 17 mA
- Scan angle
- 360 °
- Impact strength
- IK00
- Degree of protection (IP)
- IP20
- Surface finishing
- Matt
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 2.5 m
- Constant light output (CLO)
- No
- Number of switching zones
- 3
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 50 mm
- Max. presence range
- 78 m²
- Max. switching power LED
- 10 W
- Sensor type
- Passive infrared
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8535.90
Cross References
- EAN 4007529921447
- SAP 1000515996
- Code 8631902
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi

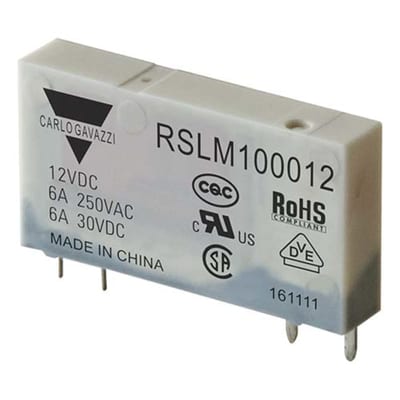

6.2mm Auxiliary Relay (RSLM100012)
Carlo Gavazzi

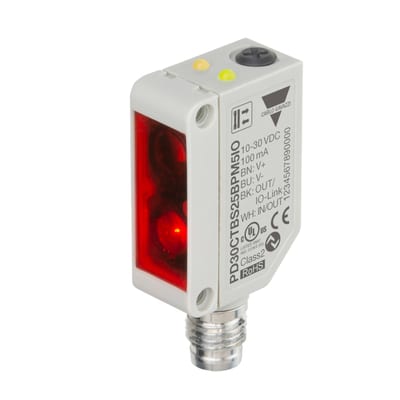

Photoelectric Sensor IO link BGS 250mm M8 plug
PD30CTBS25BPM5IO
Carlo Gavazzi
Smart Dupline SBQP360L24M
Carlo Gavazzi
Photoelectric Sensor, Direct.Relay,Multi
PMD8RG
Carlo Gavazzi
Double Differansetrykktrans AIR 2500PA (kpel-M-N)
KPEL-M-N
Carlo Gavazzi
Meter 1-Phase 100A with Mbus (EM112DINAV01XM1PFB)
Carlo Gavazzi
UK Närvarodetektor PD3-1C-CEILING
92196
Carlo Gavazzi
Time Relay BLINK/Pulse generator (ECSSM23B10S)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 92144?
- 92144 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is 92144.
- What is the HS code for 92144?
- The customs tariff (HS) code for 92144 is 8535.90.
- Who manufactures 92144?
- 92144 is a Carlo Gavazzi product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 92144?
- Yes — the 92144 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 92144?
- The minimum order quantity is 1.
- Is 92144 available?
- Yes — 92144 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
