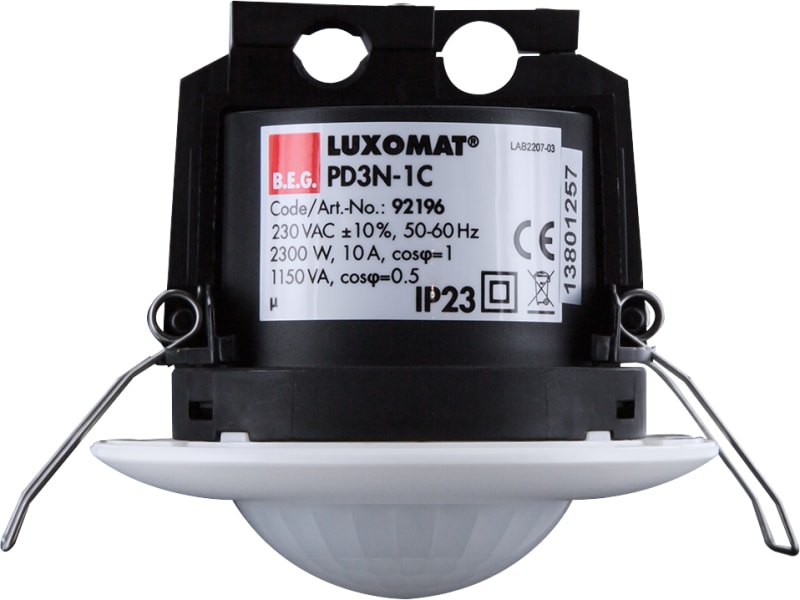

UK Närvarodetektor PD3-1C-CEILING
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 92196 Motion detector for ceiling mounting with a channel for control of light.
Technical Specifications
- Manufacturer part number (MPN)
- 92196
- EAN / GTIN
- 4007529921966
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Movement sensor
- Height
- 81 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switching-on delay
- 1 s
- Switch-off delay
- 1 s
- Built-in depth
- 81 mm
- Diameter
- 83 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 5 m
- Max. reach sideways
- 5 m
- Max. switching power
- 2300 W
- Temperature
- -25–50 °C
- Max. starting current
- 165 A
- Material
- Plastic
- Diameter reach on floor
- 10 m
- RAL-number (similar)
- 9010
- Control current
- 17 mA
- Scan angle
- 360 °
- Impact strength
- IK00
- Degree of protection (IP)
- IP20
- Surface finishing
- Matt
- Min. switch-on time
- 1 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 2.5 m
- Number of switching zones
- 3
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 50 mm
- Max. presence range
- 78 m²
- Max. switching power LED
- 10 W
- Sensor type
- Passive infrared
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8535.90
Cross References
- EAN 4007529921966
- SAP 1000515991
- Code 8962559
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Time Relay BLINK/Pulse generator (ECSSM23B10S)
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18L50N14M1IO)
Carlo Gavazzi
Smart Dupline SHQP360L7MFO
Carlo Gavazzi
Photoelectric Sensor IO link Direct 1M M8 plug (PD30CTDI10BPM5IO)
Carlo Gavazzi
Carlo Gavazzi RHS100 DIN-Rail Heatsink for Single SSR
Carlo Gavazzi
Inductive transmitter M18 PNP NC plug connection (ICB18L50N20PCM1)
Carlo Gavazzi
Inductive transmitter M12 PNP NO 2M cable (ICB12S30N10PO)
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18L50F08A2IO)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 92196?
- 92196 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is 92196.
- What is the HS code for 92196?
- The customs tariff (HS) code for 92196 is 8535.90.
- Who manufactures 92196?
- 92196 is a Carlo Gavazzi product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 92196?
- Yes — the 92196 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 92196?
- The minimum order quantity is 1.
- Is 92196 available?
- Yes — 92196 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
