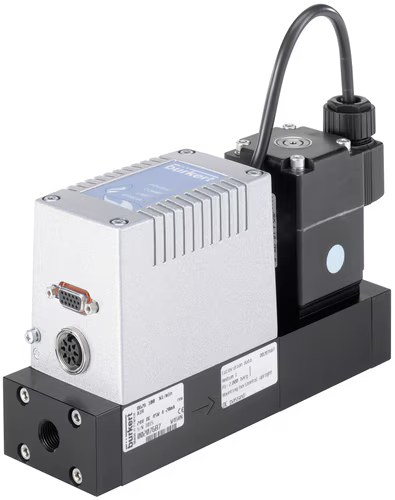

Bürkert Mass Flow Controller for Gases (MFC) Type 8626

The mass flow controller (MFC) Type 8626 is suitable for controlling the mass flow of high gas quantities. The thermal inline sensor is located directly in the gas stream and therefore achieves very fast response times. A direct-acting proportional valve from Bürkert guarantees, as the actuator, high response sensitivity. The integrated PI controller ensures excellent control characteristics of the MFC. The 8626 can optionally be calibrated for two different gases; the user can toggle between these two gases. As electrical interfaces both, analogue standard signals and fieldbuses are available. The mass flow controller Type 8626 is especially designed for use in harsh environments due to a low sensitivity to contamination and the high IP degree of protection The MFC is ideal for various applications, e.g. burner controls, heat treatment, metallurgy, the food and beverage industry, environmental technology, material coatings, fuel cell technology or test benches.

Seal

FKM or EPDM

Housing

Aluminium (coated)

Base block

Aluminium (black anodised) or stainless steel

Total weight

2.5 kg (aluminium, with 16 W valve)

Nominal flow range (QN)

20…1500 l/min (N2) (higher flow rates on request)

Operating pressure

Max. 10 bar (145 psi) (depending on the nominal valve size)

Repeatability

± 0.1 % FS

Turndown ratio

1:50 (with vertical installation position with flow from top to bottom, the turndown ratio is 1:10)

Response time (t95 %)

< 500 ms

Nominal valve sizes

0.8…12 mm

KVSvalues

0.02…2.8 m3/h

Operating voltage

24 V DC

Power consumption

Max. 12.5…37 W (with analogue variant: depending on proportional valve)

Residual ripple

< 2 %

Voltage tolerance

± 10 %

HS Code

9026.10
