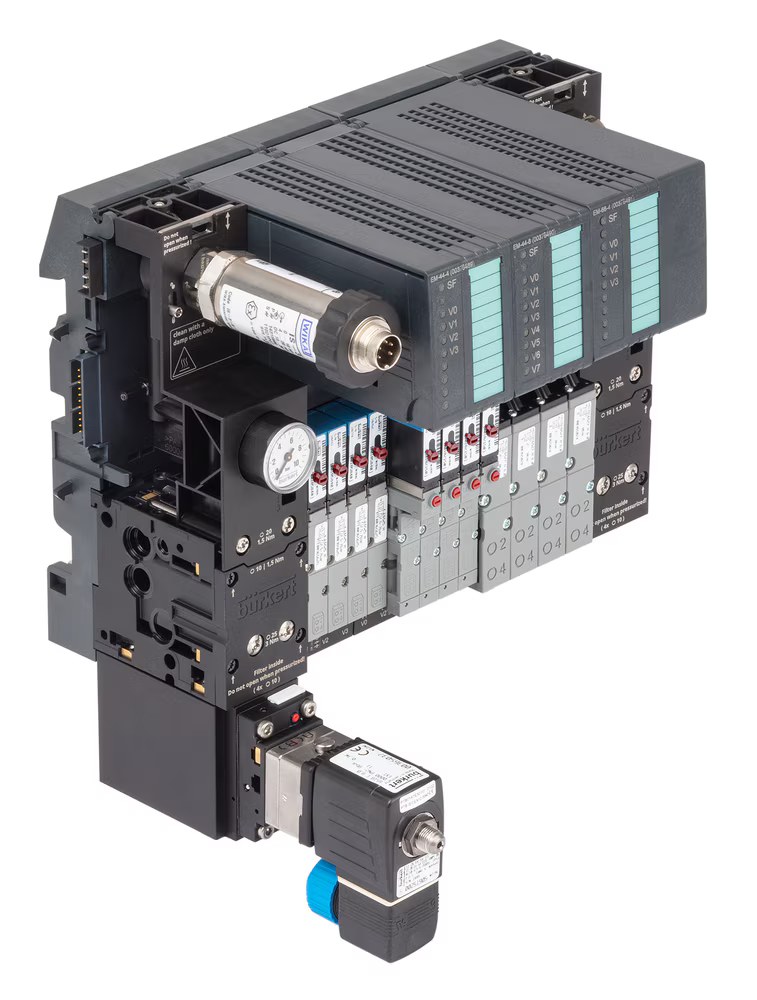

Bürkert AirLINE Ex – Electropneumatic Automation System for Use in Potentially Explosive Areas

AirLINE Ex Type 8650 is a modular electrical and pneumatic automation system that controls complex processes in potentially explosive areas (Zones 1/21). The protection class “intinsically safe” (Ex i) of electronic modules and valves allows modules to be replaced during operation. With the modules of the cooperation partner Siemens, Bürkert offers electrical, analogue and digital I/O functions for use in Zone 0.

Operating pressure

2.5–7 bar

Medium temperature

0–50 °C

Body

PA, PC, nickel-plated brass, stainless steel PA, PC, brass nickel-plated, stainless steel

Seal

NBR NBR

Width per station

11 mm 16.5 mm

Manual override

Standard Standard

Number of valve slots

Max. 48 Max. 32

Maximum number of valve functions

Max. 96 valve functions Max. 32 valve functions

Pneumatic Intermediate feed

Necessary from 20 valve functions Necessary from 20 valve functions

Pressure data

Overpressure to atmospheric pressure Overpressure to atmospheric pressure

Pressure range

Vac....8 bar Vac....8 bar

External supply air (auxiliary pilot air)

> 2.5 bar > 2.5 bar

Flow rate QNn value air

300 l/min measured at + 20 °C, 6 bar pressure 700 l/min measured at + 20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure at valve inlet and 1 bar differential...

Nominal operating mode

Continuous operation (100 % duty cycle) Continuous operation (100 % duty cycle)

Switching time

Measured according to ISO 12238 Measured according to ISO 12238

Operating voltage

Supply via ET 200iSP: 24 V DC, alternatively Supply via ET 200iSP: 24 V DC, alternatively 120/230 V AC, installed protection class Ex e 120/230 V AC, installed protection class...

Voltage tolerance

± 10 % ± 10 %

Residual ripple (at DC)

N/A (due to the PowerSupply module of N/A (due to the PowerSupply module of Siemens SIMATIC ET 200iSP™) Siemens SIMATIC ET 200iSP™)

Nominal power of each valve

For single valves: 0.3 W 0.3 W For double valves: 2x 0.3 W with power reduction

Nominal current of each valve

Max. 30 mA Max. 30 mA

Digital input

Via cooperation partners Via cooperation partners

Protection class

III according to DIN EN 61140, VDE 0140 III according to DIN EN 61140, VDE 0140 s

Operating medium

Oil-free or lubricated compressed dry air Oil-free or lubricated compressed dry air (5 µm filter recommended) (5 µm filter recommended)

Compressed air quality

ISO 8573 - 1: 2010, Class 7.4.4 ISO 8573 - 1: 2010, Class 7.4.4

Degree of protection

IP30 IP30

Working port

D 6, D ¼" D8

Air supply connection

G⅜ G⅜

Communication module

Siemens SIMATIC ET 200iSP™ Siemens SIMATIC ET 200iSP™

HS Code

8481.20
