Product Description

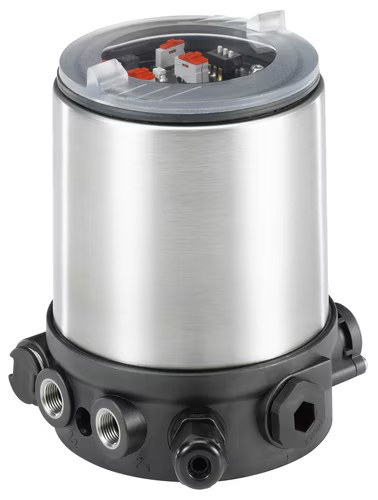

Feedback Type 8685 and control head Type 8686 are optimized for integrated mounting on pneumatically operated actuators Type 2036 Robolux. The adjustment to the individual actuator size is done through DIP-switches. As compact units the devices contain the complete automation functionality of both individually operated actuator pistons. Depending on the configuration the electrical and visual position feedback is done by non-contact switches and LEDs. Integrated pilot valves control the actuator pistons and AS-interface communication is available. In this way a complete concept for decentralized automation is feasible. The compact body is especially destinguished by its hygienic design, materials beeing chemically resistant against cleaning media and a proven IP protection. In addition the Control Head Type 8686 features an integrated compressed air filter to protect the pilot valve function against particles through the compressed air supply.
Technical Specifications
- Body
- 1.4435 stainless steel (316L)
- Diaphragm
- EPDM (AD), laminate of Advanced PTFE and EPDM (EK), laminate of GYLON® and EPDM (ER)
- Actuator
- 1.4308 stainless steel (CF8)
- Internally mechanically polished
- Ra ≤ 0.5 μm (ASME BPE SF1) (external Ra ≤ 1.6 μm)
- Internally electrically polished
- Ra ≤ 0.38 μm (ASME BPE SF4 / DIN HE4) (external Ra ≤ 1.6 μm)
- Maximum pilot pressure (CF A)
- 6…10 bar for RV50/70
- Pilot air port
- Thread G ⅛"
- EPDM (AD)
- + 5…+ 130 °C (steam sterilisation + 140 °C for 60 min)
- Laminate of Advanced PTFE and
- + 5…+ 90 °C (not recommended for steam)
- Medium pressure
- Max. 8 bar (dependent on actuator and diaphragm)
- Nominal diameter (port connection)
- ¼"…2", DN 04…DN 50
- Welded connection
- DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B
- Clamp connection
- DIN 32676 series A (DIN pipe)
- Ambient temperature
- 0…+ 60 °C
- Degree of protection
- IP65/IP67 according to EN 60529
Standards & Compliance
- HS Code
- 8481.80
Cross References
- Burkert 8686
- Buerkert 8686
- Bürkert 8686
- Type 8686
- Burkert Type 8686
Product Documentation
More from Bürkert
Bürkert
Bürkert Robolux Multiway Multiport Diaphragm Valve with Control and Feedback Head
Type 8806
Bürkert
Bürkert 2/2-WAY Ball Valve, 3-Piece
Type 2654
Bürkert
Bürkert 2/2-WAY or 3/2-WAY Ball Valve, 2-Piece
Type 2651
Bürkert
Bürkert Butterfly Valve
Type 2671
Bürkert
Bürkert Ball Valve, Manually Operated
Type 2657
Bürkert
Bürkert Plastic Butterfly Valve
Type 2674
Bürkert
Bürkert T-diaphragm Valve with Manually Operated Actuator (Basic)
Type 2934
Bürkert
Bürkert Tank Bottom Diaphragm Valve with Manually Operated Actuator (Basic)
Type 2935
