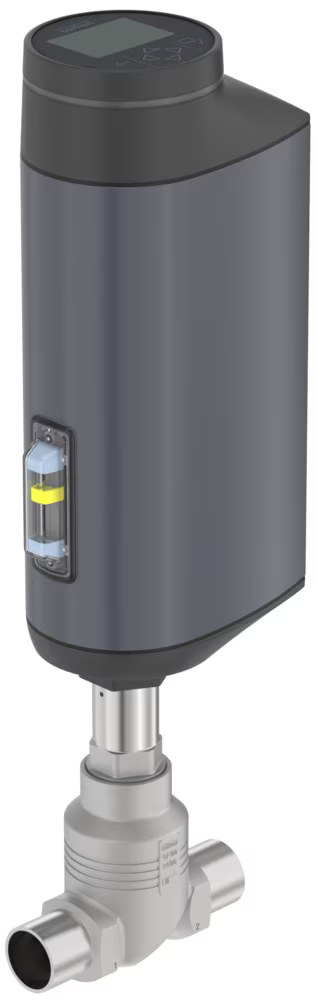

Bürkert Electromotive 2-Way Globe Control Valve

The innovative process controller Bürkert valve Type 3361 is the solution when it comes to control tasks under demanding operating conditions. The electromotive actuator with ball screw positions the control cone with highest precision. A unique feature is its high positioning speed up to 6 mm/s that reacts almost delay-free to process signals and that can be varied according to customer demands. Pressure variations or shocks in the medium are not transferred to the valve position. Each flow optimised valve body can be equipped with up to 5 different valve seats for a precise adaptation according to customer needs. If necessary, the safety position can be approached by an optional energy storage in case of power failure. Actuator and valve are adapted perfectly to each other with closed design and robust surface. This ensures the hygienic requirements of fast and residue-free cleaning. Harsh environmental conditions are no problem for the Type 3361 because of the degree of protection IP65/IP67 and its high impact and vibration resistance. Unrivalled service life and tightness is guaranteed by the proven self-adjusting packing gland with exchangeable V-seals. The fieldbus-compatible Type 3361 provides many helpful functions for process monitoring, valve diagnostics and predictive maintenance and thus offers the decisive advantage of a modern process automation.

Nominal diameter (port connection)

DN 10…DN 100, NPS ⅜…4

Flow direction

Against closing direction (below seat)

Operating pressure

0…25 bar(g), 40 bar(g) on request

Nominal pressure

PN 25/PN 40 (DIN EN 1333), Class 150 (DIN EN 1759)

KVS value

0.1…140 m3/h

Flow characteristic

Equal percentage, linear (on request)

Seat leakage

Class III, IV and VI (DIN EN 60534 - 4)

Closing time

AG2: 3.3…6.6 s

Theoretical rangeability

Up to 50:1

Travel speed

6 mm/s (for AG2 actuator force 1300 N)

Dead band of the position control

± 0.1 %

Operating voltage

24 V DC ± 10 % (maximum residual ripple 10 %)

Operating current

AG2: maximum 3 A (at maximum load and including 1 A charging current of the optional energy

Duty cycle

100 %

Standby consumption

2…5 W

HS Code

8481.80
