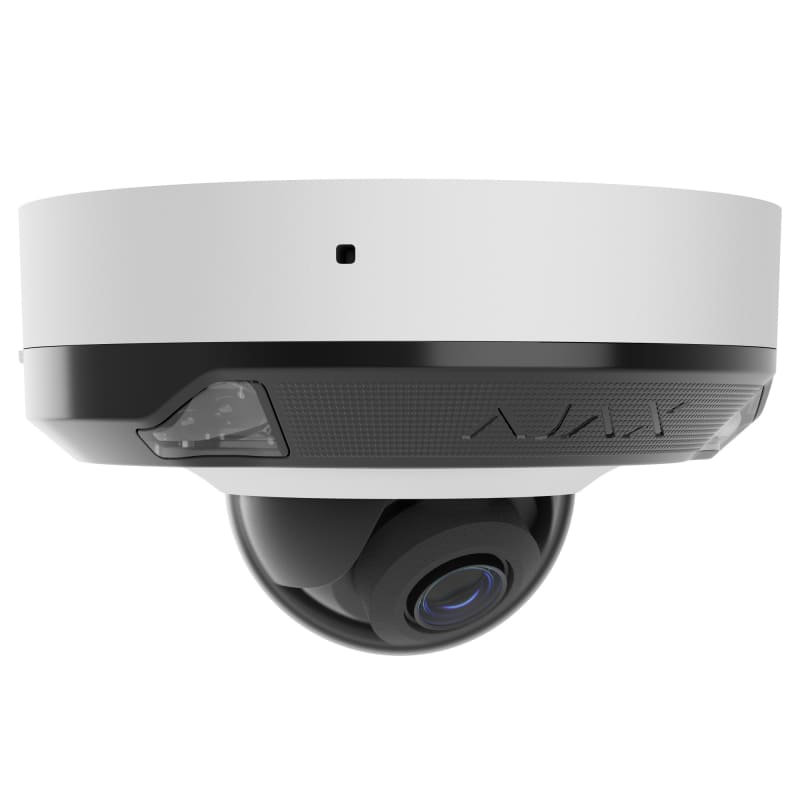

AJAX Domecam MINI HL 5 MP/2.8 MM White
Pricing
Request a quote
We reply within 24 hours
Overview
AJAX Domecam MINI HL 5 MP/2.8 MM White (part number 126269.214.WH1) is listed under Safety & Detection / CCTV & Surveillance. Sales unit: pcs; Mounting method: Wall/ceiling; Colour: White; Width: 114 mm; Height: 67 mm; Wireless: No.
Technical Specifications
- Manufacturer part number (MPN)
- 126269.214.WH1
- EAN / GTIN
- 4823114073069
- Sales unit
- pcs
- Mounting method
- Wall/ceiling
- Colour
- White
- Width
- 114 mm
- Height
- 67 mm
- Wireless
- No
- Depth
- 114 mm
- Voltage type
- DC
- Power consumption
- 8.5 W
- Diameter
- 114 mm
- Construction type
- Dome shape
- Memory capacity
- 256 GB
- Ambient temperature
- -30–60 °C
- Picture system
- PAL
- Protocol
- TCP/IP
- Supply voltage
- 12 V
- Impact strength
- IK08
- Focus
- Fixed
- Focal size
- 2.8 mm
- With video motion detector
- Yes
- Degree of protection (IP)
- IP65
- Vandal proof
- Yes
- Scope of application
- Outside
- Number of pixels (Megapixel)
- 5
- Property picture system
- Colour
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3 of (PoE)
- With memory card
- No
- With lens
- Yes
- Max. infrared reach
- 15 m
- Supports H.264 codec
- Yes
- Supports H.265 codec
- Yes
- ONVIF-compliant
- Yes
- With white light
- Yes
- Thermal camera
- No
- Number of video streams
- 5
- Modular (lens and camera separated)
- No
- Max. white light reach
- 15 m
- With slot for memory card
- Yes
- With integrated AI analysis
- Yes
- Transmission
- TCP/IP
- Country of origin
- Ukraine
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 4823114073069
- SAP 1200877534
- Code 84106837
Product Documentation
More from Ajax
Ajax
Ajax Fibra ineSupply (45W). White
82131.181.WH1
Ajax
AJAX EN54 Fireprotect (sounder/Vad) RED
118601.279.RD1
Ajax
Ajax TurretCam HLVF (5 Mp) White
126281.197.WH1
Ajax
Ajax Superior BulletCam HLVF (4 Mp) White
135570.217.WH1
Ajax
Ajax Superior TurretCam HLVF (8 Mp) wht
135576.197.WH1
Ajax
Ajax 117743.307.BL1 MotionCam HDR Wireless PIR Camera Detector, Black
Ajax
Siren Streetsiren PLUS S. Black
117720.308.BL1
Ajax
Ajax DomeCam HLVF (5 Mp) black
126284.214.BL1
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 126269.214.WH1?
- 126269.214.WH1 can be ordered from cballast.com as a Ajax catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Ajax product?
- The manufacturer part number is 126269.214.WH1.
- What is the HS code for 126269.214.WH1?
- The customs tariff (HS) code for 126269.214.WH1 is 8525.89.
- Who manufactures 126269.214.WH1?
- 126269.214.WH1 is a Ajax product in the Safety & Detection range.
- Is a datasheet available for 126269.214.WH1?
- Yes — the 126269.214.WH1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 126269.214.WH1?
- The minimum order quantity is 1.
- Is 126269.214.WH1 available?
- Yes — 126269.214.WH1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
