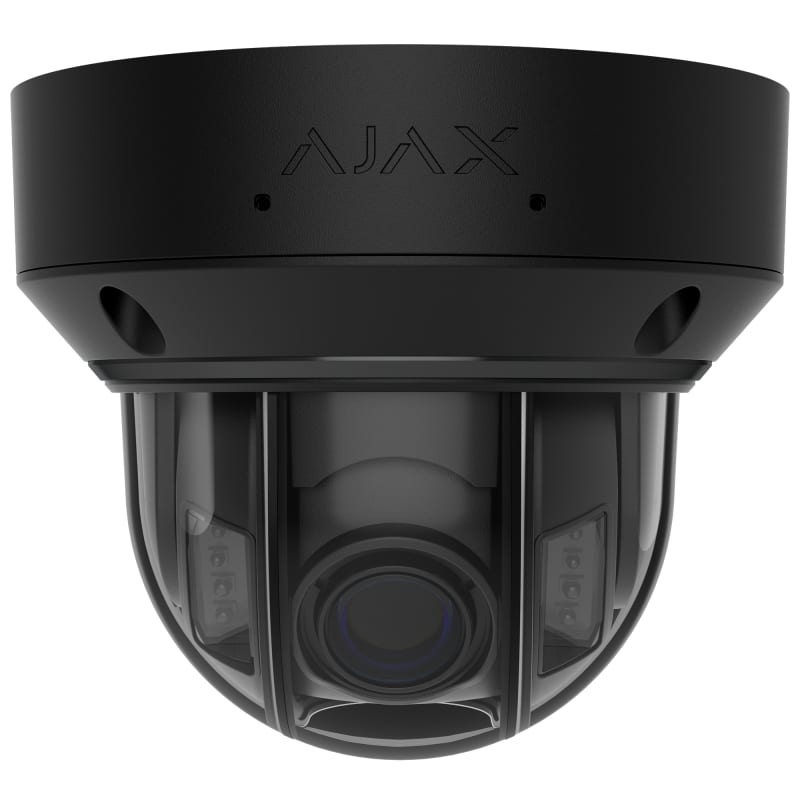

Ajax DomeCam HLVF (5 Mp) black
Part number126284.214.BL1EAN / GTIN4823114089411HS code8525.89
Safety & Detection
CCTV & Surveillance
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Ajax Baseline HLVF Dome camera in black, 2.8-12mm lens, IR up to 40 m, PoE 802.3af and SD card slot up to 256 GB, IP67, IK10/IK08.
Technical Specifications
- Manufacturer part number (MPN)
- 126284.214.BL1
- EAN / GTIN
- 4823114089411
- Sales unit
- pcs
- Mounting method
- Wall/ceiling
- Colour
- Black
- Height
- 115 mm
- Voltage type
- DC
- Power consumption
- 6 W
- Diameter
- 136 mm
- Suitable for wall mounting
- Yes
- Construction type
- Dome shape
- Number of digital inputs
- 1
- Number of digital outputs
- 1
- Memory capacity
- 256 GB
- Ambient temperature
- -40–60 °C
- Suitable for outdoor use
- Yes
- Protocol
- TCP/IP
- Supply voltage
- 12 V
- Impact strength
- IK10
- Focus
- Variable
- Focal size
- 2.8–12 mm
- With video motion detector
- Yes
- Motor zoom
- Yes
- Degree of protection (IP)
- IP67
- Vandal proof
- Yes
- Scope of application
- Universal
- Type of transmission medium
- Twisted Pair
- Number of pixels (Megapixel)
- 5
- Property picture system
- Colour
- Suitable for surface mounting
- Yes
- Flush-mounted installation/built-in installation
- No
- With loudspeaker
- Yes
- With infrared lighting
- Yes
- Power over Ethernet (PoE)
- 802.3 at (PoE+)
- With memory card
- No
- With microphone
- Yes
- Max. infrared reach
- 40 m
- Horizont
Standards & Compliance
- HS Code
- 8525.89
Cross References
- EAN 4823114089411
- SAP 1200918235
- Code 84200602
Product Documentation
Document preview: Ajax DomeCam HLVF (5 Mp) black (126284.214.BL1) — Specification sheet
