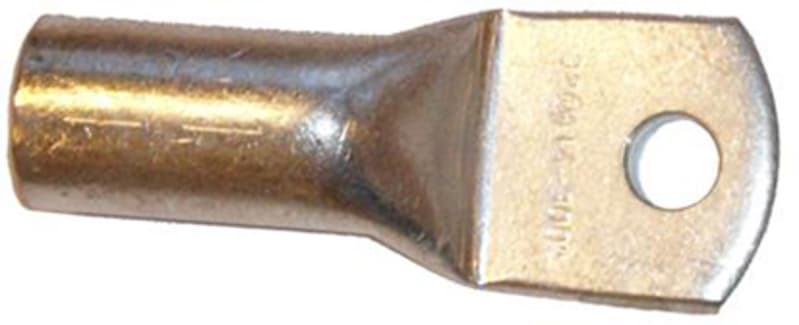

Abiko KHD 120-10 Copper Tube Cable Lug 120 mm² M10
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KHD 120-10 — compression (crimp) copper tube cable lug for terminating a 120 mm² conductor onto an M10 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue)
- Conductor cross-section
- 120 mm²
- Stud / bolt hole
- M10
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KHD
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KHD 120-10
- EAN / GTIN
- 7070920018198
- Sales unit
- pcs
- Package quantity
- 25 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920018198
- SAP 1200605556
- Code 83010532
Product Documentation
