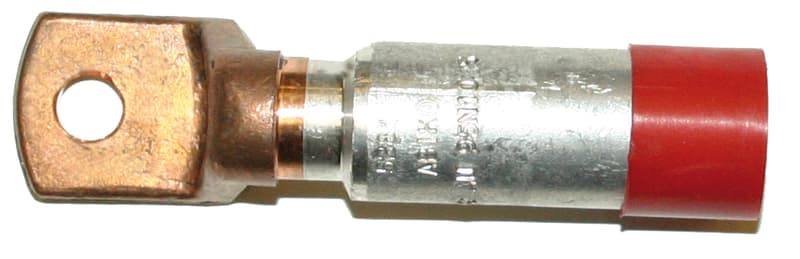

Abiko AKK 150-12 Aluminium-Copper Bimetallic Compression Cable Lug 150 mm² M12
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko AKK 150-12 — aluminium-copper (AlCu) bimetallic compression cable lug for terminating a 150 mm² aluminium conductor onto an M12 stud. The aluminium barrel is friction-welded to a copper palm from solid material, so an aluminium conductor connects directly to a copper busbar or apparatus terminal without a separate bimetal washer. Two compression crimps are made on the aluminium barrel; accepts solid (IEC 60228 Class 1) and stranded (Class 2) aluminium conductors.
Technical Specifications
- Type
- Aluminium-copper (AlCu) bimetallic compression cable lug
- Conductor cross-section
- 150 mm² (aluminium)
- Stud / bolt hole
- M12
- Conductor class
- Solid (IEC 60228 Cl.1) & stranded (Cl.2) aluminium
- Material
- Friction-welded solid aluminium barrel + electrolytic copper palm
- Connection
- Aluminium conductor to copper busbar / apparatus terminal
- Crimp
- Two compression crimps on the aluminium barrel
- Compression connector standard
- IEC 61238-1
- Manufacturer part number (MPN)
- AKK 150-12
- EAN / GTIN
- 7070920013223
- Sales unit
- pcs
- Package quantity
- 12 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920013223
- SAP 1000006470
- Code 834081
Product Documentation
More from Abiko
Abiko
Service Pliers Cable Lug ETC.50
Abiko
Abiko Crimping tool for coaxial connectors, RG 58/59
DCC 1113
Abiko
Abiko Crimping tool for wire-end ferrules, 4–10 mm²
EEB 4010
Abiko
Abiko M12 Flat Washer, Untreated, Metric Size 13
SPENN 12
Abiko
Abiko KRF 16-12 Copper Tube Cable Lug 16 mm² M12
Abiko
Abiko AKS 150/95 Aluminium-Copper Bimetallic Through Connector 150 mm² Al / 95 mm² Cu
Abiko
Abiko Crimping die jaw, 90 mm² (C 13)
C 13 VERKTØY
Abiko
Abiko KRTS 185-10 Copper Tube Cable Lug 185 mm² M10 (Narrow Palm)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AKK 150-12?
- AKK 150-12 can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is AKK 150-12.
- What is the HS code for AKK 150-12?
- The customs tariff (HS) code for AKK 150-12 is 8536.90.
- Who manufactures AKK 150-12?
- AKK 150-12 is a Abiko product in the Electrical Components range.
- Is a datasheet available for AKK 150-12?
- Yes — the AKK 150-12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AKK 150-12?
- The minimum order quantity is 1.
- Is AKK 150-12 available?
- Yes — AKK 150-12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
