Abiko A 0853 R Insulated Ring Terminal 0.75 mm² M5 (Red)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 0853 R — pre-insulated compression (crimp) copper ring terminal for terminating a 0.75 mm² conductor onto an M5 stud. The barrel is tin-plated electrolytic copper with a brazed neck. The closed ring tongue seats under a screw or nut for a bolted stud connection. The insulation is halogen-free nylon (PA) with an easy-entry conductor funnel and is colour-coded red for the 0.5-1.5 mm² conductor range. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight connection. Operating temperature -20 °C to +105 °C; insulation UL-approved; terminal to DIN 46237. Applied in control panels, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Pre-insulated ring terminal (crimp) Conductor cross-section: 0.75 mm² Conductor range (colour code): 0.5-1.5 mm² (Red) Stud / bolt hole: M5 Conductor class: Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper Barrel material: Electrolytic copper, tin-plated, brazed neck Insulation: Nylon (PA), halogen-free, easy-entry Operating temperature: -20 °C to +105 °C Approvals: Insulation UL-approved Standard: DIN 46237 Series: Abiko A (OEM prefix KA) Manufacturer part number (MPN): A 0853 R EAN / GTIN: 7070920010444 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920010444
- SAP 1000015759
- Code 8131985
Product Documentation
More from Abiko
Abiko
UNINSULATED. RING Terminal 0,5 mm²
B 0532 R
Abiko
Abiko KHD 70-10 Copper Tube Cable Lug 70 mm² M10
Abiko
DIN-RAIL TERMINAL, Polyamide (ok 434)
OK 434
Abiko
Abiko A 1507 HF Fully-Insulated Flat Tab, 6.3 × 0.8 mm
Abiko
Abiko A2553GB Insulated Angled Fork (Spade) Terminal 1.5–2.5 mm² M5 (Blue)
A 2553 GB
Abiko
Abiko KRF 400-20 Copper Tube Cable Lug 400 mm² M20
Abiko
Abiko A 2506 T insulated butt splice sleeve, 4-6 mm²
Abiko

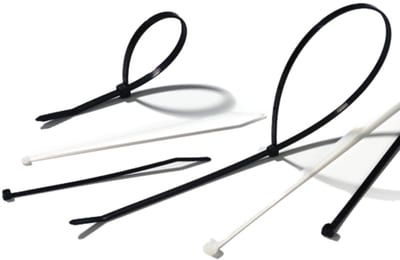

Cable TIE, Black 228 X 4,7MMTY 22
TY 225-50XC
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A 0853 R?
- A 0853 R can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is A 0853 R.
- What is the HS code for A 0853 R?
- The customs tariff (HS) code for A 0853 R is 8536.90.
- Who manufactures A 0853 R?
- A 0853 R is a Abiko product in the Electrical Components range.
- Is a datasheet available for A 0853 R?
- Yes — the A 0853 R datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A 0853 R?
- The minimum order quantity is 1.
- Is A 0853 R available?
- Yes — A 0853 R is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
