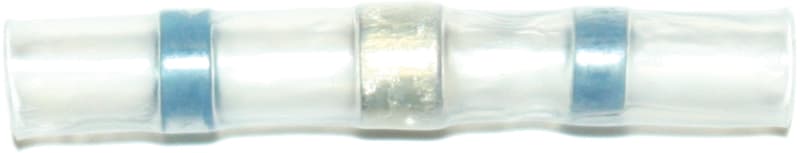

Abiko A 2527 CWT Solder-Ring Heat-Shrink Butt Splice 2.5 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko A 2527 CWT insulated butt splice connector for joining two conductors of 2.5 mm² cross-section. Pre-applied solder ring; adhesive-lined modified-polyolefin heat-shrink sleeve. The sleeve carries a pre-applied solder ring and adhesive-lined heat-shrink; heating forms a soldered, waterproof joint without a crimp tool. Rated -55 °C to +125 °C.
Technical Specifications
- Type
- Insulated cable butt splice (joins two conductors of equal cross-section)
- Manufacturer part number (MPN)
- A 2527 CWT
- EAN / GTIN
- 7070920009813
- Conductor cross-section
- 2.5 mm²
- Material
- Pre-applied solder ring; adhesive-lined modified-polyolefin heat-shrink sleeve
- Insulation
- Modified polyolefin heat-shrink with internal adhesive; integral solder ring melts to bond conductors when heated
- Sealing
- Adhesive lining gives a waterproof joint
- Connection
- Solder (no crimp tool required — apply heat)
- Operating temperature
- -55 °C to +125 °C
- Approvals
- Halogen-free, Waterproof (sealed)
- HS code
- 8536.90
Standards & Compliance
- Material
- Pre-applied solder ring; adhesive-lined modified-polyolefin heat-shrink sleeve
- Temperature Range
- -55 °C to +125 °C
- Classification / Approval
- Halogen-free, Waterproof (sealed)
- HS Code
- 8536.90
Cross References
- EAN 7070920009813
- SAP 1200075805
- Code 81923417
Product Documentation
