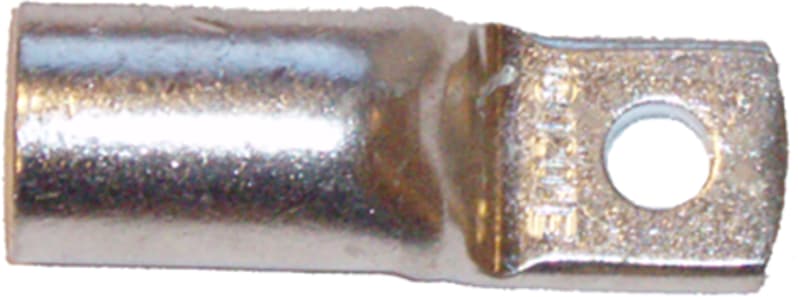

Abiko KRTS 35-6 Copper Tube Cable Lug 35 mm² M6 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 35-6 — compression (crimp) copper tube cable lug for terminating a 35 mm² conductor onto an M6 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 35 mm²
- Stud / bolt hole
- M6
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 35-6
- EAN / GTIN
- 7070920016750
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016750
- SAP 1200071946
- Code 81923799
