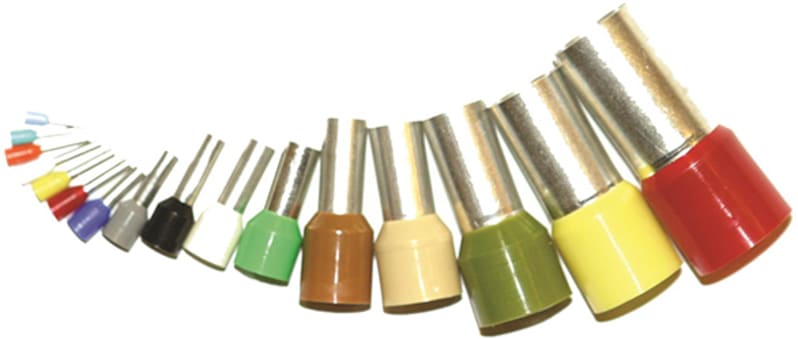

Abiko Insulated Wire-End Ferrule 0.5 mm² Orange 6 mm barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 0,5 ORANGE K — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 0.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded orange by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Barrel length 6 mm. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule
- Conductor cross-section
- 0.5 mm²
- Barrel length
- 6 mm
- Insulation
- Polypropylene (PP), colour-coded by size (DIN 46228-4)
- Insulation colour
- Orange
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 0,5 ORANGE K
- EAN / GTIN
- 7070920017764
- Sales unit
- pcs
- Package quantity
- 100 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920017764
- SAP 1200605545
- Code 83010564
Product Documentation
