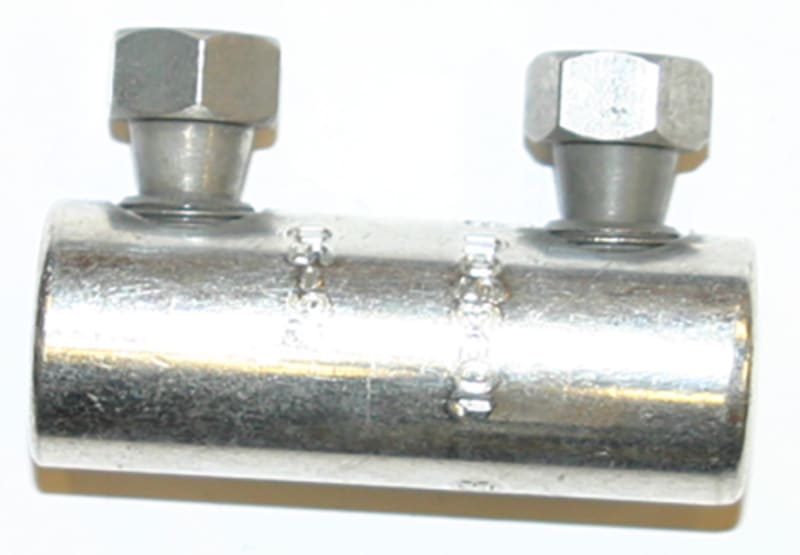

Abiko SCA 625 Tinned Aluminium/Copper Screw Joint 6-25 mm² 2 Bolts
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko SCA 625 is a tinned screw joint for sector and round aluminium or copper conductors from 6 to 25 mm². It uses two shear-head bolts (rated 10 kN) to make the connection, with an outer diameter of 16 mm, inner diameter of 6.7 mm, and 40 mm length. The joint is used in low-voltage cable jointing for both underground and above-ground distribution work.
Technical Specifications
- Manufacturer part number (MPN)
- SCA 625
- EAN / GTIN
- 7070920004795
- Sales unit
- pcs
- Surface protection
- Tinned
- Number of screws
- 2
- Oil stop/centre bar
- No
- Conductor material
- Aluminium/copper
- Nominal cross section copper, RM
- 6–25 mm²
- Nominal cross section copper, RE
- 6–25 mm²
- Nominal cross section copper, SM
- 6–25 mm²
- Nominal cross section aluminium, RM
- 10–25 mm²
- Nominal cross section aluminium, RE
- 10–25 mm²
- Nominal cross section aluminium, SM
- 10–25 mm²
- Nominal cross section aluminium, SE
- 10–25 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- Nominal cross section, class 5
- 6–25 mm²
- With insulation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920004795
- SAP 1200071942
- Code 81922741
Product Documentation
More from Abiko
Abiko

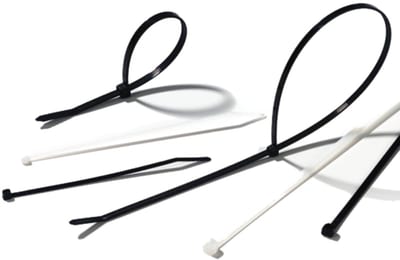

Cable TIE, Black 141 X 3,6MMTY 12
TY 125-40XC
Abiko
Kablekutter 0- 45 MM Outer DIA.
RCC 500
Abiko

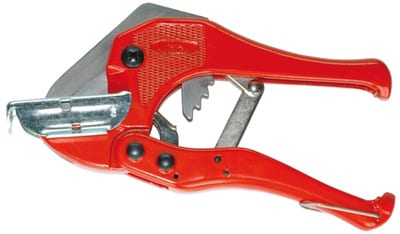

Abiko M 42 Pipe and Duct Shears with Ratchet, up to Ø38 mm
Abiko

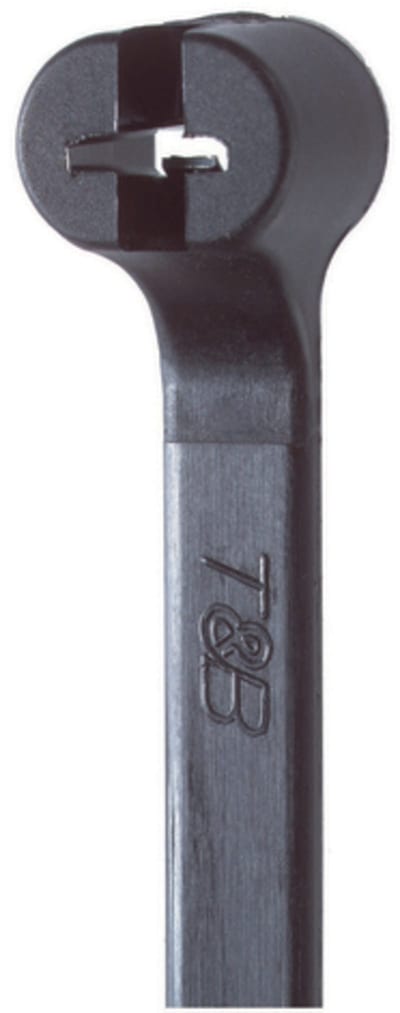

Cable TIE with Steel LOCK Black 2,4X 200
TY 5232 MX
Abiko

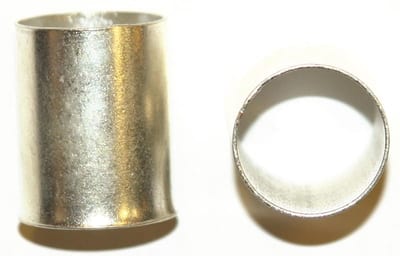

Abiko Uninsulated Wire-End Ferrule 25 mm² 15 mm barrel
25-15 ET
Abiko
Abiko Crimping tool for uninsulated connectors, 4–10 mm²
EWB 4099
Abiko
Abiko KRF 25-12 Copper Tube Cable Lug 25 mm² M12
Abiko

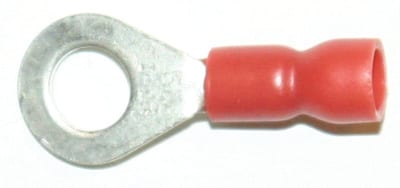

Insulated Copper RING Terminal (A 1512 R)
