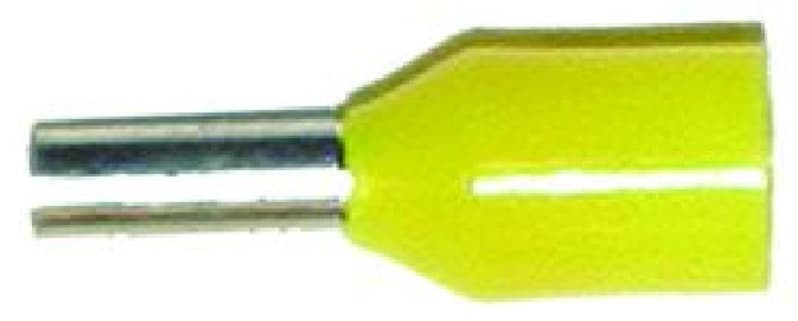

Abiko Insulated Wire-End Ferrule 1 mm² Yellow type HL
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 1,0 gul HL — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 1 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded yellow by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 1 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Yellow Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 1,0 gul HL EAN / GTIN: 7070920008847 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920008847
- SAP 1200072029
- Code 81922920
Product Documentation
More from Abiko
Abiko
Cable TIE, Black 546 X 13,3MMTYL 5
TYL 546XC
Abiko
Abiko A 2508 FL Insulated Flat Receptacle 1.5–2.5 mm², 8.4 × 0.8 mm (Blue)
Abiko
Abiko A 1504 FL 8 Insulated Flat Receptacle 0.5–1.5 mm², 4.8 × 0.8 mm (Red)
Abiko
UNINSULATED. RING Terminal 16 (B 16-10 Sh)
B 16-10 SH
Abiko

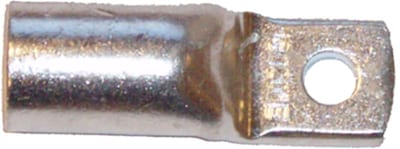

Abiko KRTS 70-6 Copper Tube Cable Lug 70 mm² M6 (Narrow Palm)
Abiko

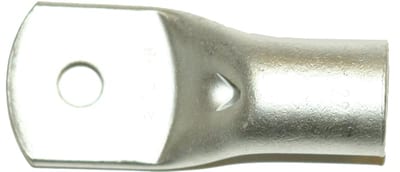

Abiko KRF 240-16 Copper Tube Cable Lug 240 mm² M16
Abiko

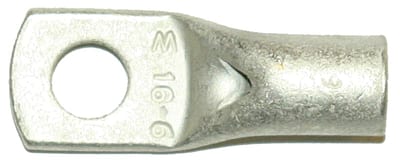

Abiko KRF 50-12 Copper Tube Cable Lug 50 mm² M12
Abiko

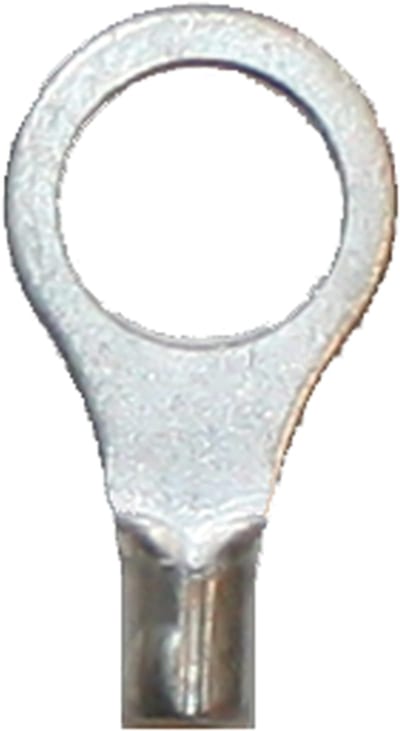

UNINSULATED. RING Terminal 2,5 mm² (B 2532 R)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1,0 gul HL?
- 1,0 gul HL can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 1,0 gul HL.
- What is the HS code for 1,0 gul HL?
- The customs tariff (HS) code for 1,0 gul HL is 8536.90.
- Who manufactures 1,0 gul HL?
- 1,0 gul HL is a Abiko product in the Electrical Components range.
- Is a datasheet available for 1,0 gul HL?
- Yes — the 1,0 gul HL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1,0 gul HL?
- The minimum order quantity is 1.
- Is 1,0 gul HL available?
- Yes — 1,0 gul HL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
