Abiko KRTS 70-6 Copper Tube Cable Lug 70 mm² M6 (Narrow Palm)
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko KRTS 70-6 — compression (crimp) copper tube cable lug for terminating a 70 mm² conductor onto an M6 stud. The barrel is formed from 99.95% electrolytic copper, tin-plated (Cu/Sn), with a ring tongue and a cable inspection hole for correct conductor insertion. The palm is narrow (reduced width) for terminals set at close centre distances. Accepts stranded (IEC 60228 Class 2) and flexible (Class 5) copper conductors; crimped with matching Abiko/Elpress dies to a gas-tight, low-resistance connection whose crimp performance is verified to IEC 61238-1. Applied in low-voltage power distribution, switchboards, motor terminations and marine and offshore installations.
Technical Specifications
- Type
- Compression (crimp) copper tube cable lug (ring tongue), narrow palm
- Conductor cross-section
- 70 mm²
- Stud / bolt hole
- M6
- Conductor class
- Stranded (IEC 60228 Cl.2) & flexible (Cl.5) copper
- Material
- Electrolytic copper 99.95%, tin-plated (Cu/Sn)
- Feature
- Cable inspection hole
- Series
- KRTS
- Crimp system
- Crimp connection, performance verified to IEC 61238-1
- Manufacturer part number (MPN)
- KRTS 70-6
- EAN / GTIN
- 7070920016798
- Sales unit
- pcs
- Package quantity
- 50 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920016798
- SAP 1200071949
- Code 81924423
Product Documentation
More from Abiko
Abiko
Abiko KRF 240-16 Copper Tube Cable Lug 240 mm² M16
Abiko
Abiko KRF 50-12 Copper Tube Cable Lug 50 mm² M12
Abiko
UNINSULATED. RING Terminal 2,5 mm² (B 2532 R)
Abiko

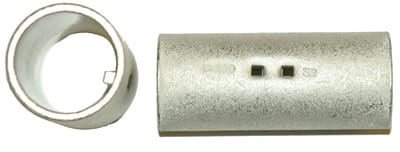

Abiko KSF 95 Copper Compression Butt Splice 95 mm² (Uninsulated)
