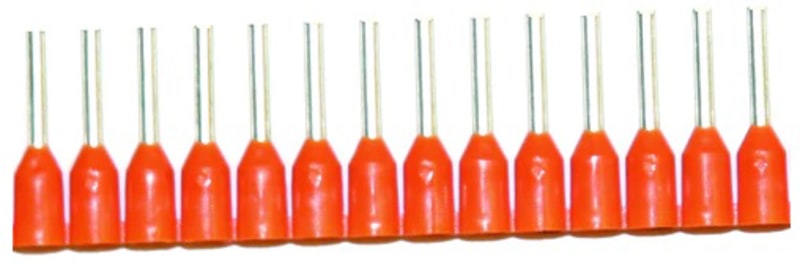

Abiko Insulated Wire-End Ferrule 0.5 mm² Bandoliered
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko Insulated Wire-End Ferrule 0.5 mm² Bandoliered — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 0.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The polypropylene (PP) collar is colour-coded by conductor size to DIN 46228-4. Supplied bandoliered on a plastic strip for automatic and sequential crimping tools (e.g. Abiko EAP series). Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated wire-end ferrule (cord-end terminal), supplied bandoliered
- Conductor cross-section
- 0.5 mm²
- Insulation
- Polypropylene (PP), colour-coded by size to DIN 46228-4
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Insulation heat resistance
- +105 °C
- Supply form
- Bandoliered on plastic strip for automatic / sequential crimping tools
- Standard
- DIN 46228-4
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 0,5 BÅND
- EAN / GTIN
- 7070920009684
- Sales unit
- pcs
- Package quantity
- 500 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009684
- SAP 1000068312
- Code 8557074
Product Documentation
