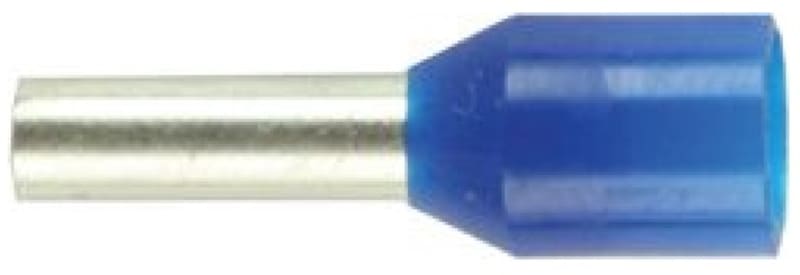

Abiko Insulated Wire-End Ferrule 2.5 mm² Blue type C
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 2,5 BLÅ C — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 2.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded blue by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 2.5 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: Blue Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 2,5 BLÅ C EAN / GTIN: 7070920009592 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009592
- SAP 1000042359
- Code 8774336
Product Documentation
More from Abiko
Abiko
Abiko Insulated Twin Wire-End Ferrule 2×1.5 mm²
1,5 TVILL
Abiko
Abiko A 4685 R Insulated Ring Terminal 6 mm² M8 (Yellow)
Abiko
Abiko Insulated Twin Wire-End Ferrule 2×16 mm²
16 TVILL
Abiko
Abiko Insulated Wire-End Ferrule 50 mm² Olive 20 mm barrel
50 oliven
Abiko
Abiko A 1553 R Insulated Ring Terminal 1.5 mm² M5 (Red)
Abiko
Abiko Crimping tool for uninsulated connectors, DIN-NORM (K 2)
Abiko
Abiko Uninsulated Wire-End Ferrule 16 mm² 18 mm barrel
16-18
Abiko
Abiko B 50 SR Uninsulated Pin Cable Lug 50 mm²
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2,5 BLÅ C?
- 2,5 BLÅ C can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 2,5 BLÅ C.
- What is the HS code for 2,5 BLÅ C?
- The customs tariff (HS) code for 2,5 BLÅ C is 8536.90.
- Who manufactures 2,5 BLÅ C?
- 2,5 BLÅ C is a Abiko product in the Electrical Components range.
- Is a datasheet available for 2,5 BLÅ C?
- Yes — the 2,5 BLÅ C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2,5 BLÅ C?
- The minimum order quantity is 1.
- Is 2,5 BLÅ C available?
- Yes — 2,5 BLÅ C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
