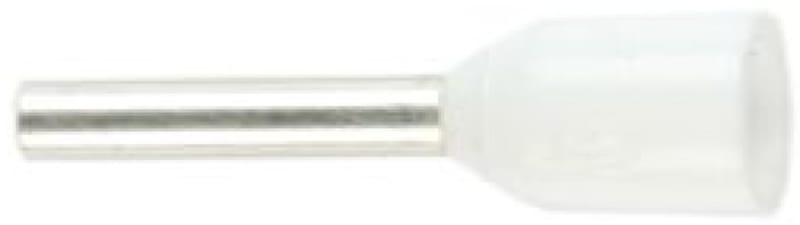

Abiko Insulated Wire-End Ferrule 0.75 mm² White type ST
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 0,75 HVIT ST — pre-insulated wire-end ferrule (cord-end terminal) that terminates a 0.75 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The barrel carries a polypropylene (PP) insulation sleeve, colour-coded white by conductor size to DIN 46228-4, with a funnel entry that guides the strands and prevents splaying. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-4. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Insulated Wire-End Ferrule Conductor cross-section: 0.75 mm² Insulation: Polypropylene (PP), colour-coded by size (DIN 46228-4) Insulation colour: White Barrel material: Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated Conductor type: Fine-stranded / flexible copper (IEC 60228 Class 5/6) Insulation heat resistance: +105 °C Standard: DIN 46228-4 Series: Abiko (Elpress Group) Manufacturer part number (MPN): 0,75 HVIT ST EAN / GTIN: 7070920009660 Sales unit: pcs Package quantity: 100 pcs HS code: 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009660
- SAP 1000046584
- Code 8836137
Product Documentation
More from Abiko
Abiko
Abiko Uninsulated Wire-End Ferrule 120 mm² 32 mm barrel
120-32
Abiko
Abiko Insulated Wire-End Ferrule 1.5 mm² Red type ST
1,5 R?D ST
Abiko
Abiko KRT 95-8 Copper Tube Cable Lug 95 mm² M8
Abiko
Abiko Insulated Wire-End Ferrule 35 mm² Beige
35 BEIGE
Abiko
Abiko Insulated Wire-End Ferrule 16 mm² Green long barrel
16 GRØNN LANG
Abiko
Abiko Insulated Wire-End Ferrule 10 mm² Ivory long barrel
10,0 ELF LANG
Abiko
Abiko KR 6-6 Copper Tube Cable Lug 6 mm² M6
Abiko
Abiko C 6 C-Connector 25 mm²
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 0,75 HVIT ST?
- 0,75 HVIT ST can be ordered from cballast.com as a Abiko catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Abiko product?
- The manufacturer part number is 0,75 HVIT ST.
- What is the HS code for 0,75 HVIT ST?
- The customs tariff (HS) code for 0,75 HVIT ST is 8536.90.
- Who manufactures 0,75 HVIT ST?
- 0,75 HVIT ST is a Abiko product in the Electrical Components range.
- Is a datasheet available for 0,75 HVIT ST?
- Yes — the 0,75 HVIT ST datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 0,75 HVIT ST?
- The minimum order quantity is 1.
- Is 0,75 HVIT ST available?
- Yes — 0,75 HVIT ST is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
