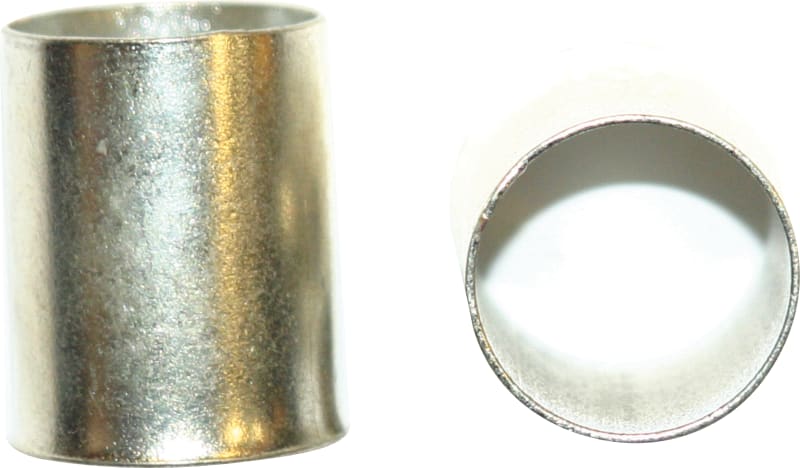

Abiko Uninsulated Wire-End Ferrule 2.5 mm² 12 mm barrel
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko 2,5-12 — uninsulated wire-end ferrule (cord-end terminal) that terminates a 2.5 mm² fine-stranded copper conductor for a secure, gas-tight insertion into a screw or spring-clamp terminal. The barrel is tin-plated electrolytic copper (Cu-ETP, Cu 99.95%). The bare (uninsulated) barrel is crimped directly to the conductor to DIN 46228-1. Barrel length 12 mm. Crimped with a matching Abiko/Elpress ferrule crimping tool. Dimensions to DIN 46228-1. Used to prepare flexible (IEC 60228 Class 5/6) conductors for control panels, switchboards, terminal blocks and motor terminations.
Technical Specifications
- Type
- Uninsulated Wire-End Ferrule
- Conductor cross-section
- 2.5 mm²
- Barrel length
- 12 mm
- Barrel material
- Electrolytic copper (Cu-ETP, Cu 99.95%), tin-plated
- Conductor type
- Fine-stranded / flexible copper (IEC 60228 Class 5/6)
- Standard
- DIN 46228-1
- Series
- Abiko (Elpress Group)
- Manufacturer part number (MPN)
- 2,5-12
- EAN / GTIN
- 7070920009073
- Sales unit
- pcs
- Package quantity
- 1000 pcs
- HS code
- 8536.90
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920009073
- SAP 1000069946
- Code 8756918
Product Documentation
More from Abiko
Abiko
Abiko KSF 16 Copper Compression Butt Splice 16 mm² (Uninsulated)
KSF 16
Abiko
Cable TIE, White 368 X 4,7mm
TY 400-50C
Abiko
Abiko KRF 95-20 Copper Tube Cable Lug 95 mm² M20
Abiko
Cable TIE, White 616 X 7,6mm
TB 24-120C
Abiko

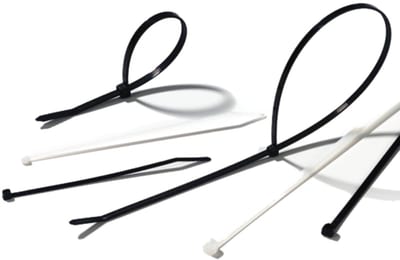

Cable TIE, White 205 X 3,6mm
TY 200-40C
Abiko
Abiko LS 7.9 1000B Stainless Steel Cable Strap 7.9 x 1000 mm, Ball-Latch
LS 7,9 1000B
Abiko

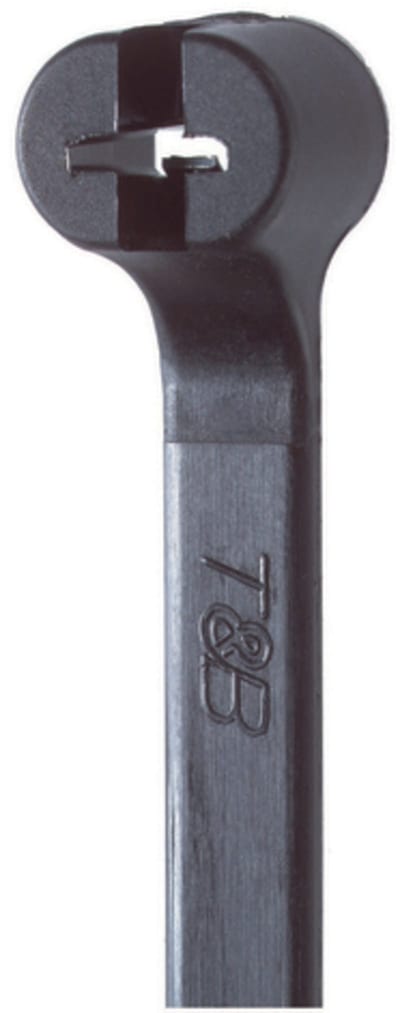

Cable TIE with Steel LOCK Black 4,8X 290
