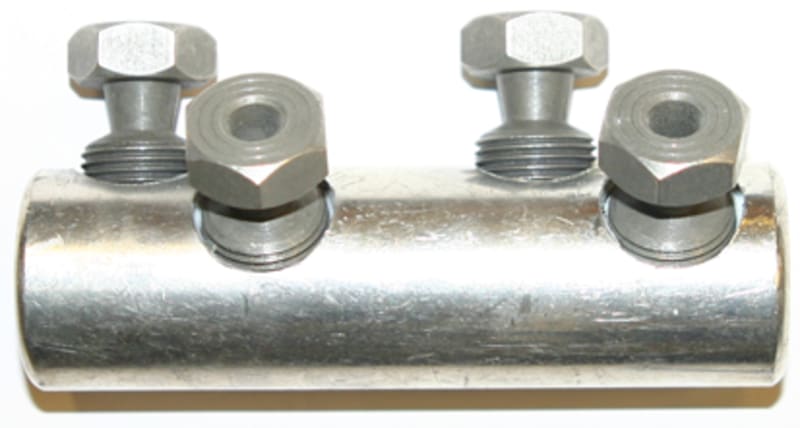

Abiko SCA 120240 Screw Connector 120-240 mm², 4-Bolt
Pricing
Request a quote
We reply within 24 hours
Product Description
Abiko SCA 120240 tinned screw connector with an internal barrier wall, for sector or round aluminium and copper conductors from 70 to 240 mm² (class 5). Four M-series screws (22 mm) provide the mechanical clamp; outer diameter 38 mm, inner diameter 23 mm, length 128 mm. Supplied without insulation.
Technical Specifications
- Manufacturer part number (MPN)
- SCA 120240
- EAN / GTIN
- 7070920004832
- Sales unit
- pcs
- Surface protection
- Tinned
- Number of screws
- 4
- Oil stop/centre bar
- No
- Conductor material
- Aluminium/copper
- Nominal cross section copper, RM
- 70–240 mm²
- Nominal cross section copper, RE
- 70–240 mm²
- Nominal cross section copper, SM
- 70–240 mm²
- Nominal cross section aluminium, RM
- 70–240 mm²
- Nominal cross section aluminium, RE
- 70–240 mm²
- Nominal cross section aluminium, SM
- 70–240 mm²
- Nominal cross section aluminium, SE
- 70–240 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- Nominal cross section, class 5
- 70–240 mm²
- With insulation
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070920004832
- SAP 1200075772
- Code 81922574
Product Documentation
More from Abiko
Abiko

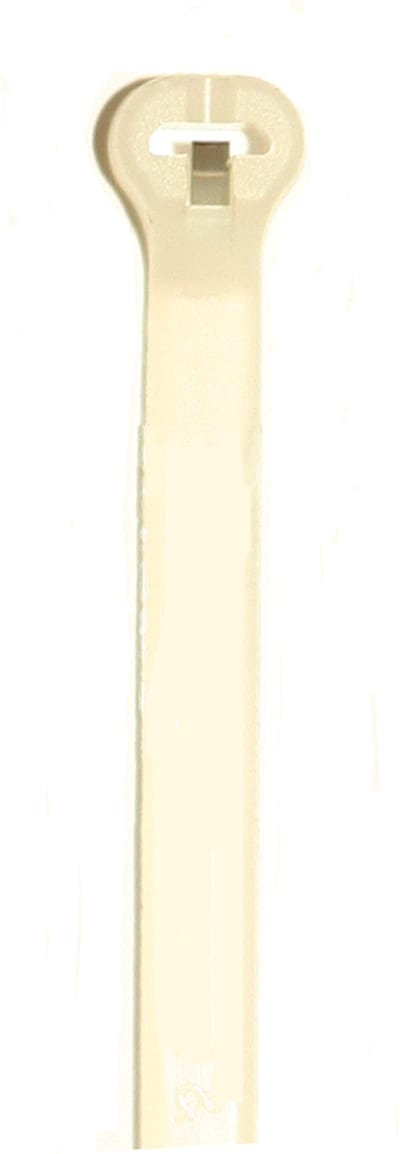

Cable TIE with Steel LOCK White 2,4X 200
TY 5232 M
Abiko

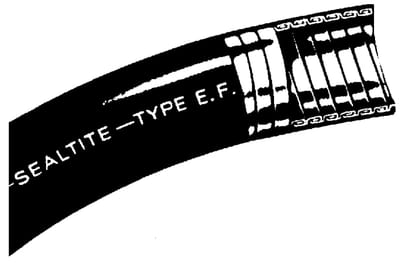

Armoured Hose Anaconda 1/2
EF 1/2
Abiko

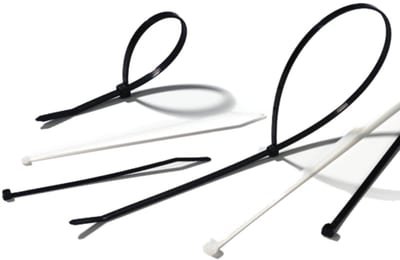

Cable TIE, White 186 X 4,7MMTY 17
TY 175-50C
Abiko
Abiko HPTB 150 Hydraulic Hand Crimping Tool 10-150 mm²
Abiko

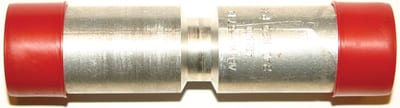

Abiko AS 70 Aluminium Compression Butt Splice 70 mm² (Uninsulated)
Abiko

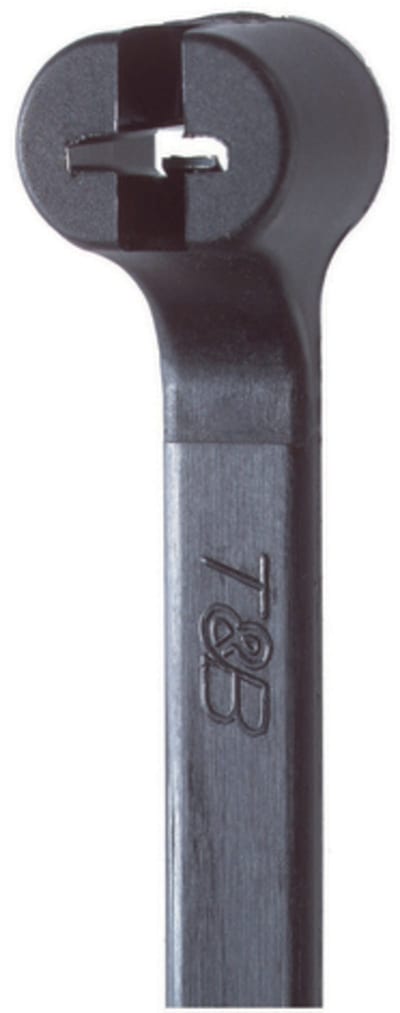

Cable TIE with Steel LOCK Black 4,8X 360
TY 528 MX
Abiko

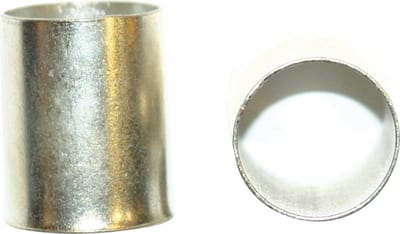

Abiko Uninsulated Wire-End Ferrule 4 mm² 15 mm barrel
